Diode Dynamics Light Bar Tech Specs
SS6 Light Bars
-

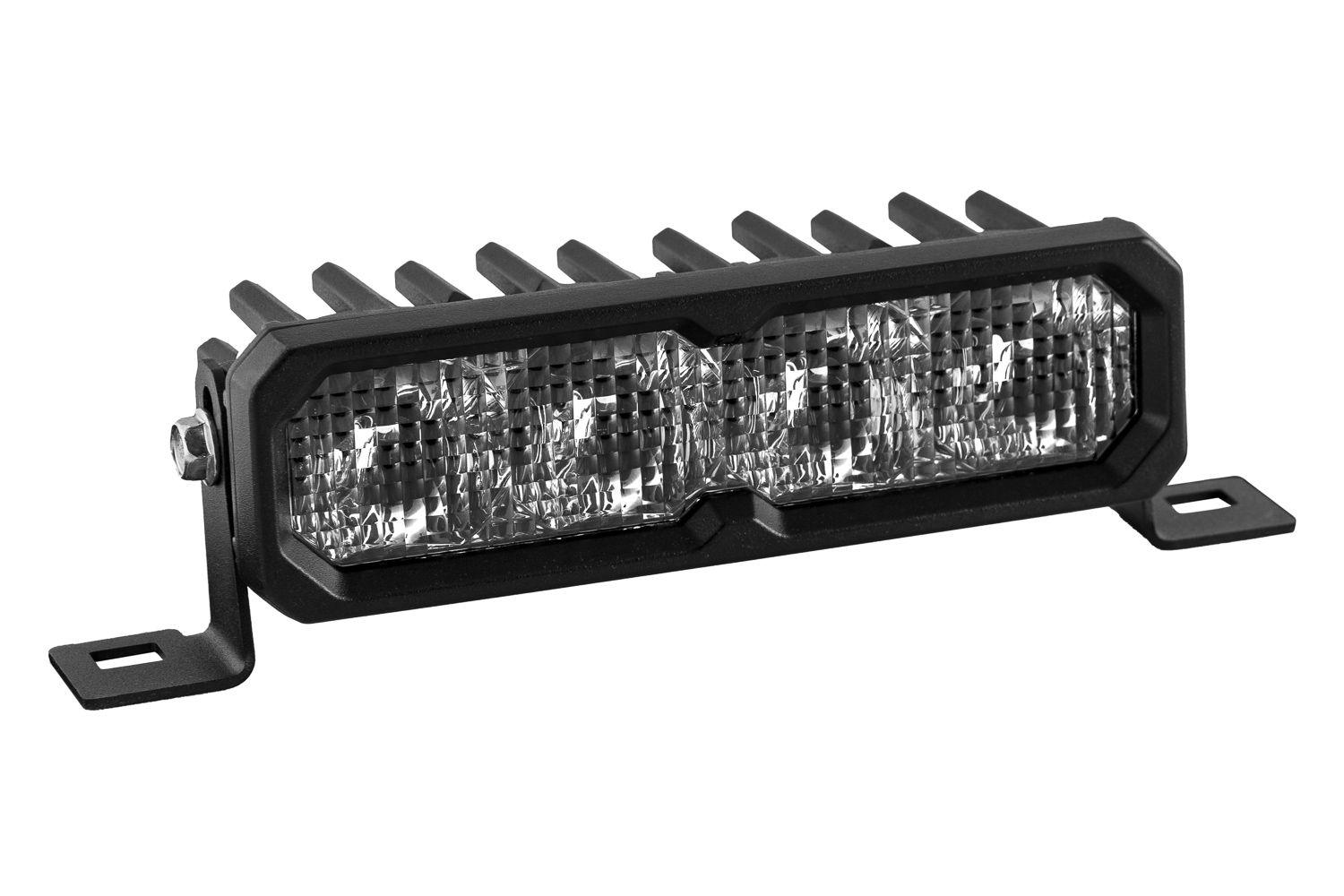

SS6 Combo
- White SKU - Sport: DD8136P, Pro: DD8148P, Max: DD8160P
- Yellow SKU - Sport: DD8138P, Pro: DD8150P, Max: DD8162P
- Raw (lumens) - Sport: 1844, Pro: 6272, Max: 7920
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts): Sport: 31.5, Pro: 35, Max: 40.5
- Current (amps @ 12.8V): Sport: 2.46, Pro: 2.73, Max: 3.16
-
SS6 Flood
- White SKU - Sport: DD8139P, Pro: DD8151P, Max: DD8163P
- Yellow SKU - Sport: DD8141P, Pro: DD8153P, Max: DD8165P
- Raw (lumens) - Sport: 1844, Pro: 6272, Max: 7920
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts):Sport: 31.5, Pro: 35, Max: 40.5
- Current (amps @ 12.8V):Sport: 2.46, Pro: 2.73, Max: 3.16
-

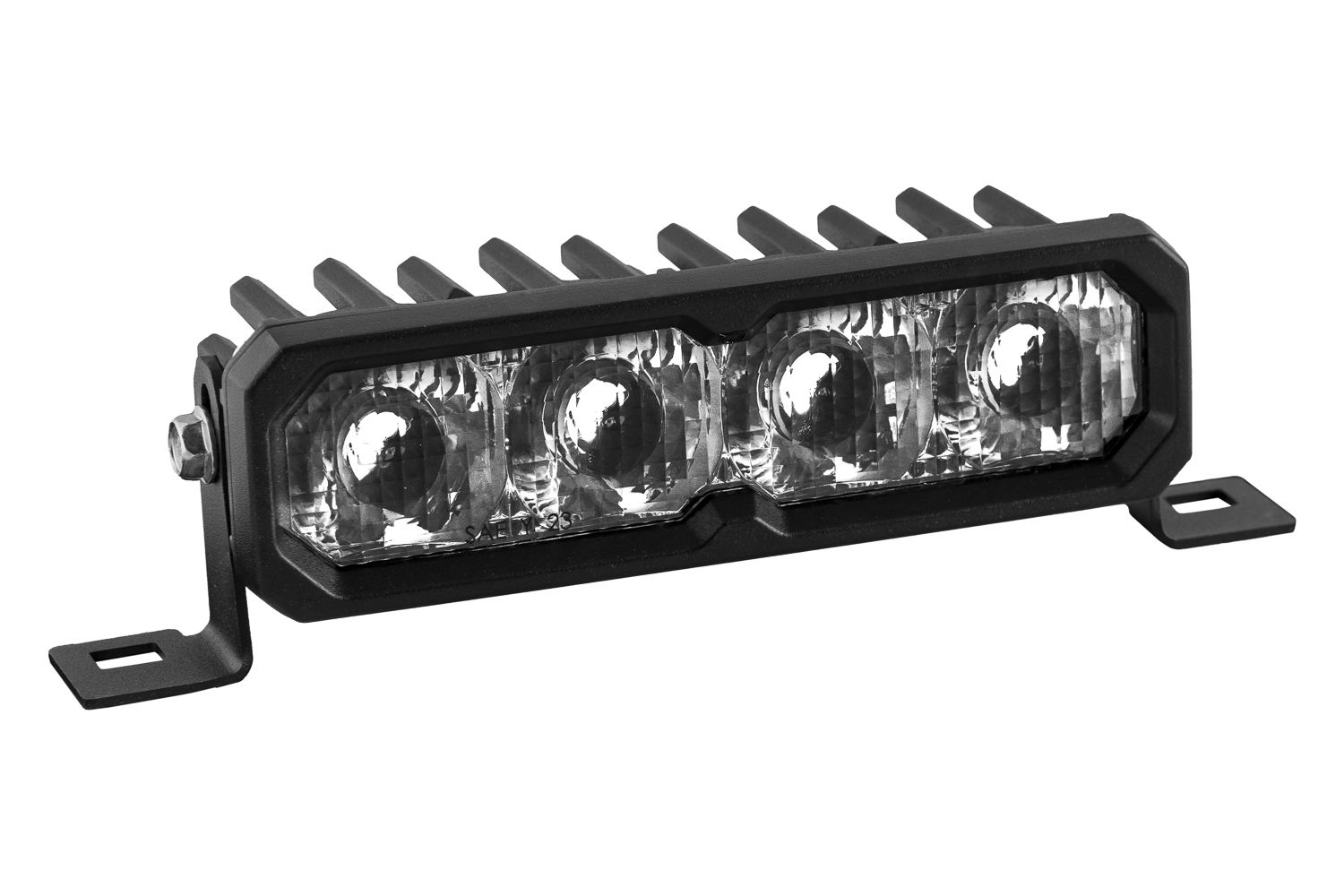

SS6 SAE Driving
- White SKU - Sport: DD8132P, Pro: DD8144P, Max: DD8156P
- Yellow SKU - Sport: DD8133P, Pro: DD8145P, Max: DD8157P
- Raw (lumens) - Sport: 1844, Pro: 6272, Max: 7920
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts):Sport: 31.5, Pro: 35, Max: 40.5
- Current (amps @ 12.8V):Sport: 2.46, Pro: 2.73, Max: 3.16
-

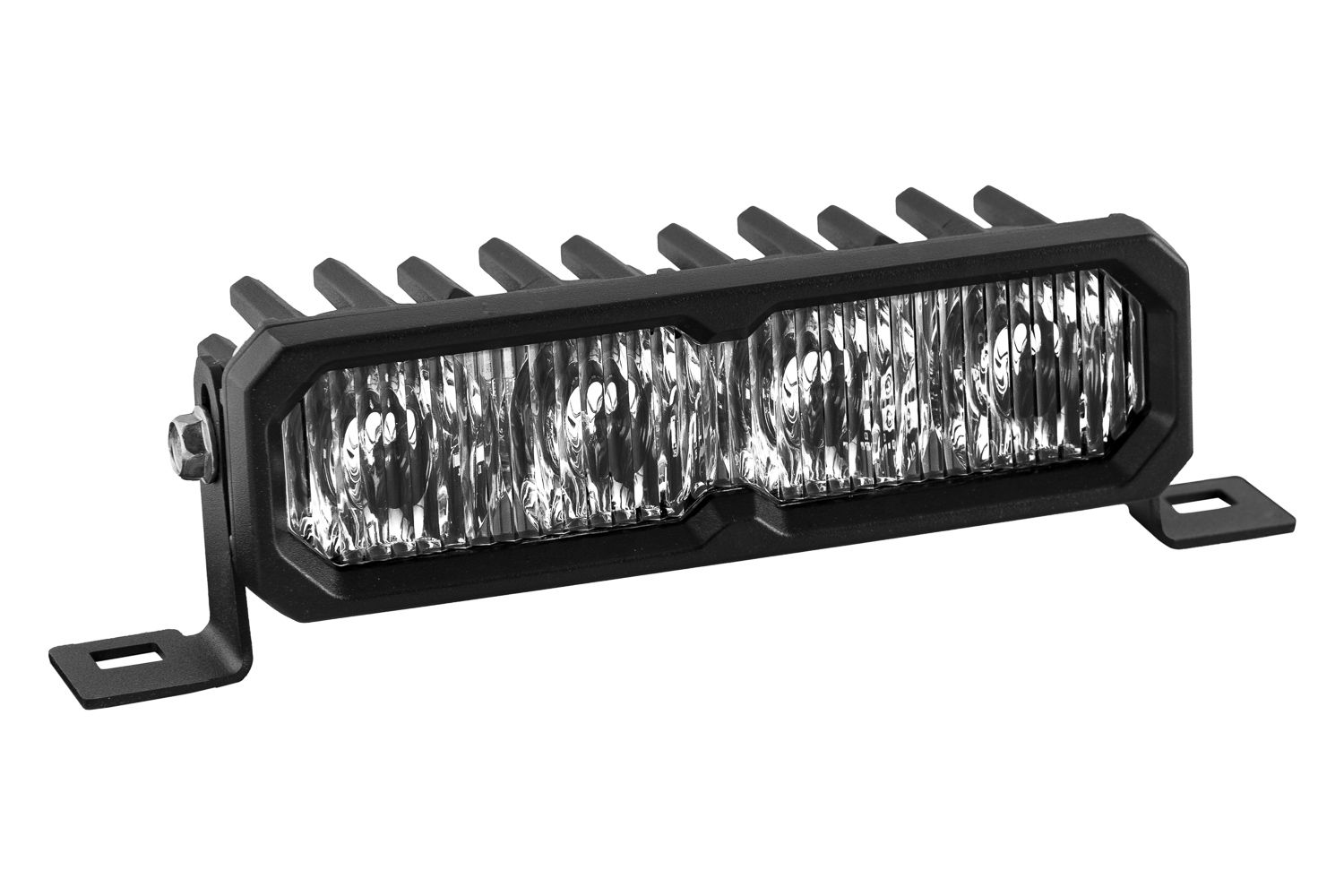

SS6 Fog
- White SKU - Sport: DD8134P, Pro: DD8146P, Max: DD8158P
- Yellow SKU - Sport: DD8135P, Pro: DD8147P, Max: DD8159P
- Raw (lumens) - Sport: 1844, Pro: 6272, Max: 7920
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage:9-30V
- Power (watts):Sport: 31.5, Pro: 35, Max: 40.5
- Current (amps @ 12.8V):Sport: 2.46, Pro: 2.73, Max: 3.16
-
SS6 Spot
- White SKU - Sport: DD8142P, Pro: DD8154P, Max: DD8166P
- Yellow SKU - Sport: DD8143P, Pro: DD8155P, Max: DD8167P
- Raw (lumens) - Sport: 1844, Pro: 6272, Max: 7920
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts):Sport: 31.5, Pro: 35, Max: 40.5
- Current (amps @ 12.8V):Sport: 2.46, Pro: 2.73, Max: 3.16
SS10 Light Bars
-

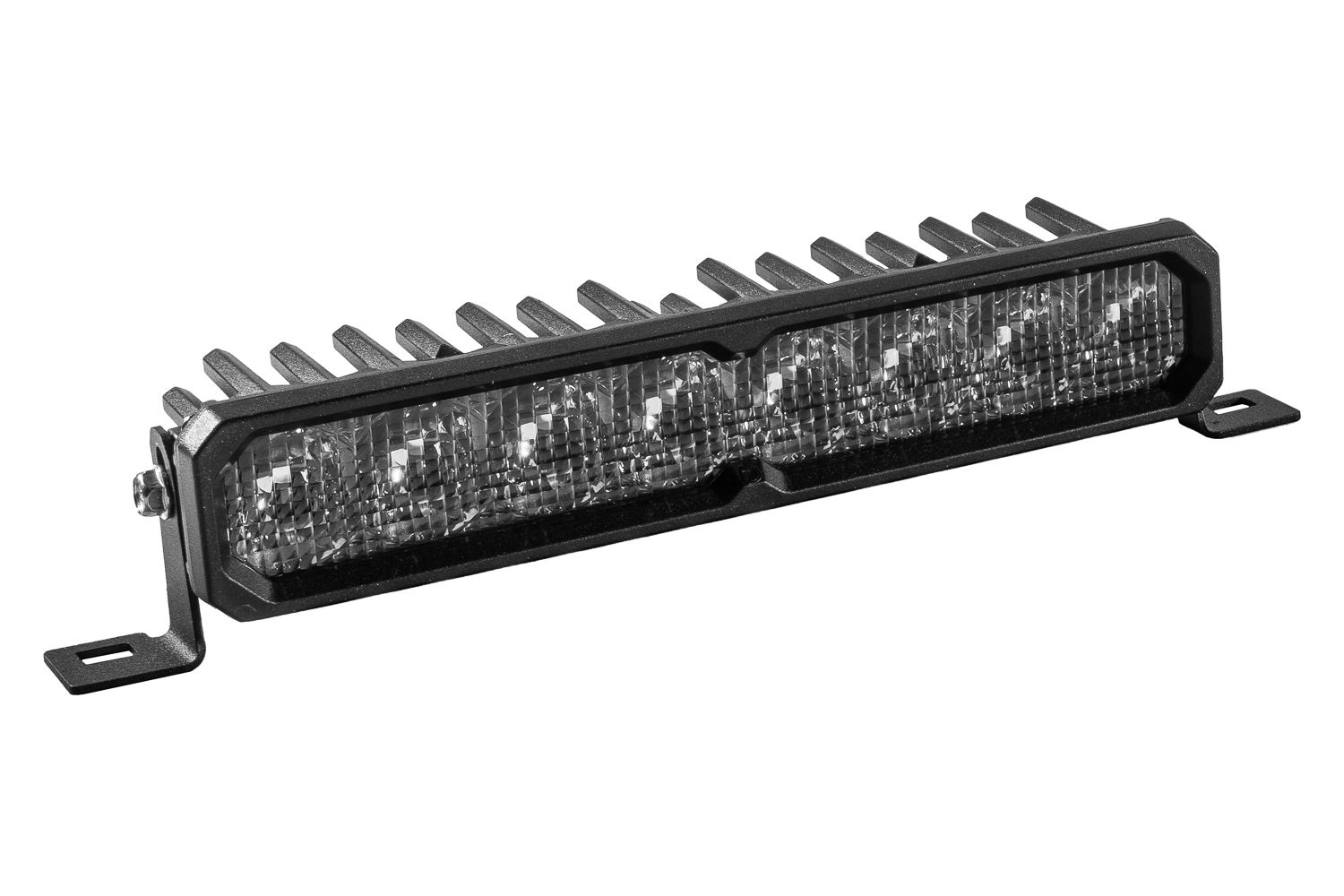

SS10 Combo
- White SKU - Sport: DD8136, Pro: DD8148, Max: DD8160
- Yellow SKU - Sport: DD8185, Pro: DD8197, Max: DD8209
- Raw (lumens) - Sport: 3688, Pro: 12544, Max: 15840
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts): Sport: 40, Pro: 51.5, Max: 61
- Current (amps @ 12.8V): Sport: 3.13, Pro: 4, Max: 4.77
-

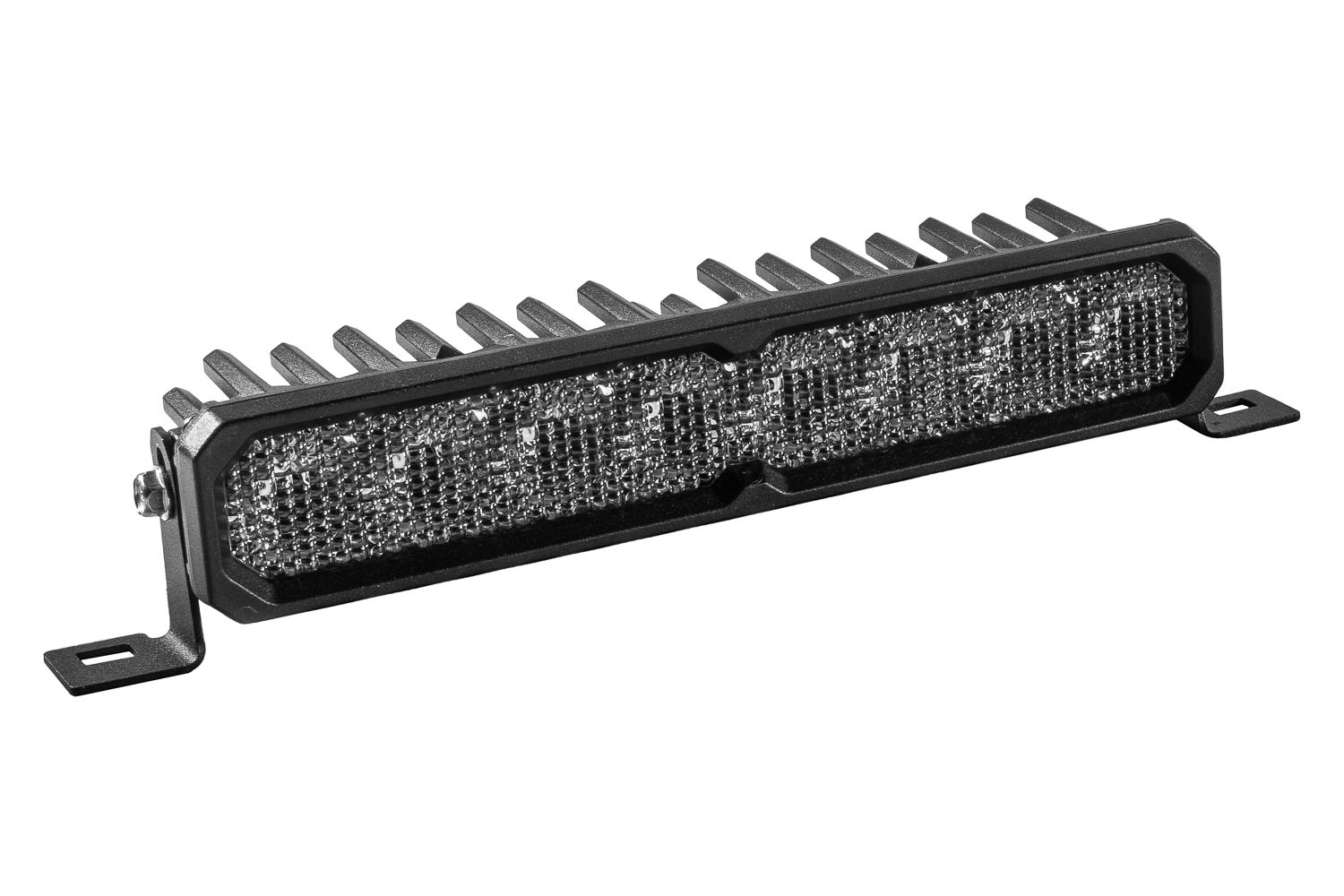

SS10 Flood
- White SKU - Sport: DD8186, Pro: DD8198, Max: DD8210
- Yellow SKU - Sport: DD8188, Pro: DD8200, Max: DD8212
- Raw (lumens) - Sport: 3688, Pro: 12544, Max: 15840
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts): Sport: 40, Pro: 51.5, Max: 61
- Current (amps @ 12.8V): Sport: 3.13, Pro: 4, Max: 4.77
-

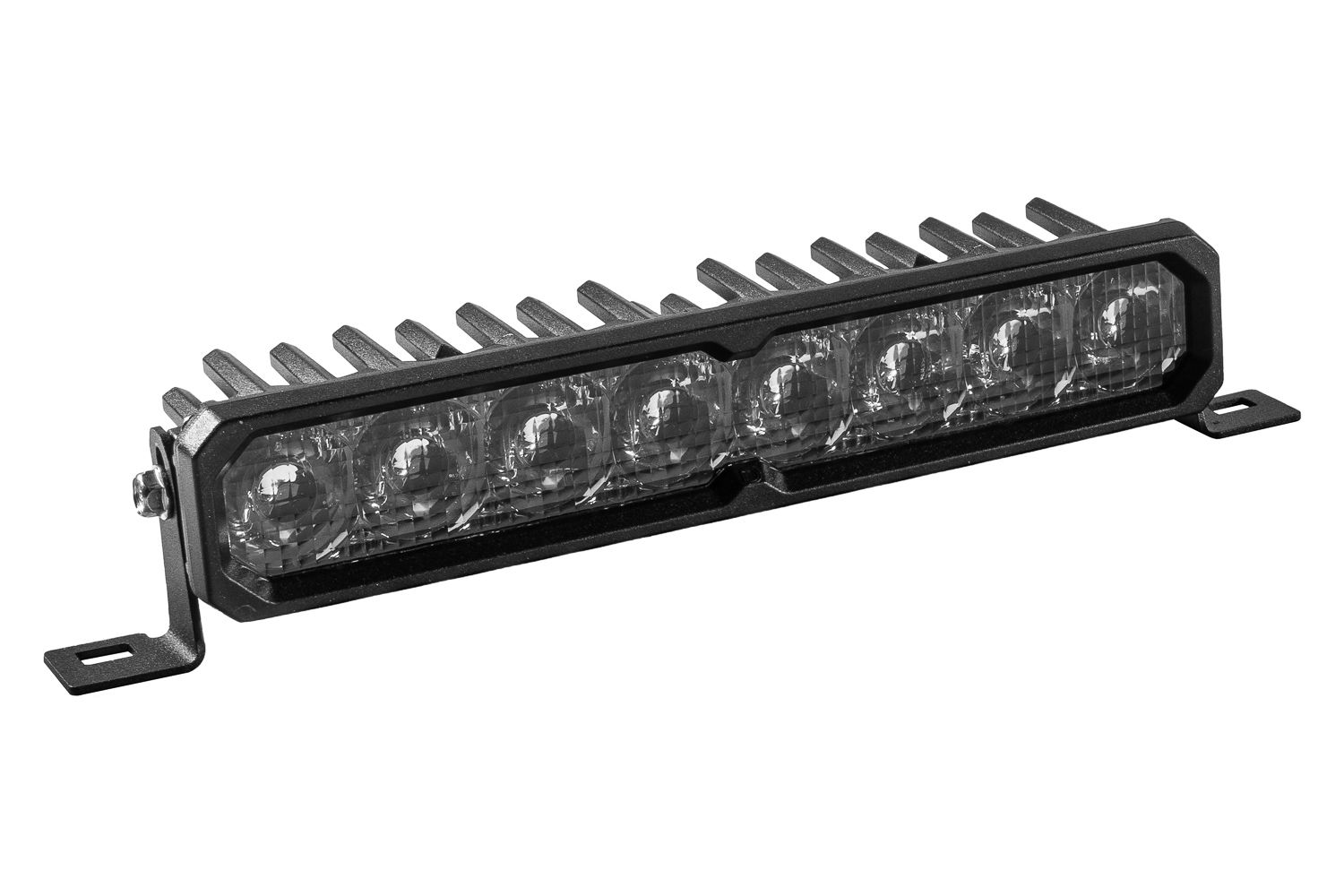

SS10 SAE Driving
- White SKU - Sport: DD8180, Pro: DD8192, Max: DD8204
- Yellow SKU - Sport: DD8182, Pro: DD8194, Max: DD8206
- Raw (lumens) - Sport: 3688, Pro: 12544, Max: 15840
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts): Sport: 40, Pro: 51.5, Max: 61
- Current (amps @ 12.8V): Sport: 3.13, Pro: 4, Max: 4.77
-
SS10 Spot
- White SKU - Sport: DD8189, Pro: DD8201, Max: DD8213
- Yellow SKU - Sport: DD8191, Pro: DD8203, Max: DD8215
- Raw (lumens) - Sport: 3688, Pro: 12544, Max: 15840
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts): Sport: 40, Pro: 51.5, Max: 61
- Current (amps @ 12.8V): Sport: 3.13, Pro: 4, Max: 4.77
SS20 Light Bars
-
SS20 Combo
- White SKU - Sport: DD8219, Pro: DD8231
- Yellow SKU - Sport: DD8221, Pro: DD8233
- Raw (lumens) - Sport: 7376, Pro: 25088
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts): Sport: 76.5, Pro: 105
- Current (amps @ 12.8V): Sport: 5.98, Pro: 8.20
-
SS20 Flood
- White SKU - Sport: DD8222, Pro: DD8234
- Yellow SKU - Sport: DD8224, Pro: DD8236
- Raw (lumens) - Sport: 7376, Pro: 25088
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts): Sport: 76.5, Pro: 105
- Current (amps @ 12.8V): Sport: 5.98, Pro: 8.20
-
SS20 SAE Driving
- White SKU - Sport: DD8216, Pro: DD8228
- Yellow SKU - Sport: DD8218, Pro: DD8230
- Raw (lumens) - Sport: 7376, Pro: 25088
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts): Sport: 76.5, Pro: 105
- Current (amps @ 12.8V): Sport: 5.98, Pro: 8.20
-

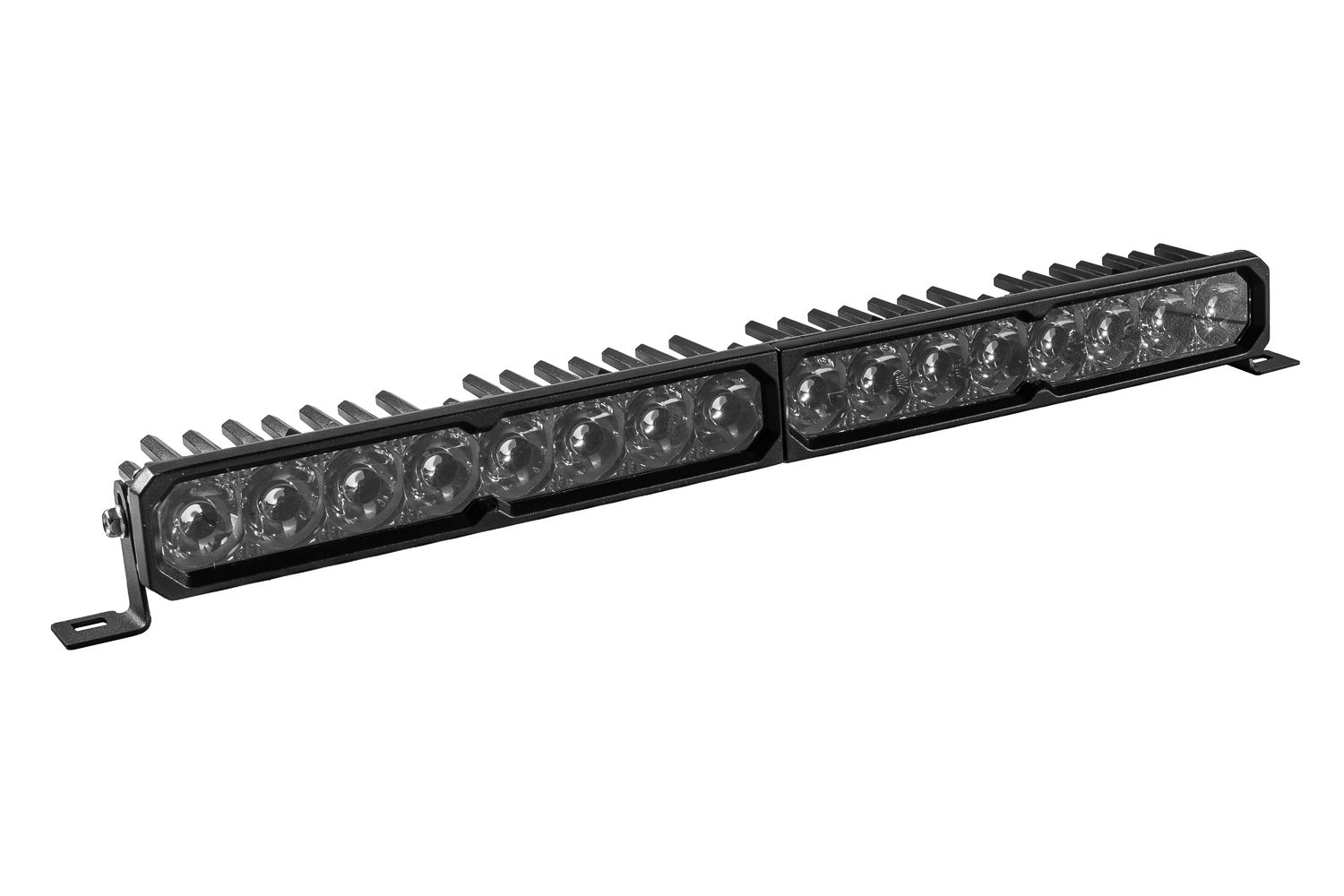

SS20 Spot
- White SKU - Sport: DD8225, Pro: DD8237
- Yellow SKU - Sport: DD8227, Pro: DD8239
- Raw (lumens) - Sport: 7376, Pro: 25088
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts): Sport: 76.5, Pro: 105
- Current (amps @ 12.8V): Sport: 5.98, Pro: 8.20
SS30 Light Bar
-
SS30 Combo
- White SKU - Sport: DD8255, Pro: DD8267
- Yellow SKU - Sport: DD8257, Pro: DD8269
- Raw (lumens) - Sport: 11064, Pro: 37632
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts): Sport: 120, Pro: 165
- Current (amps @ 12.8V): Sport: 9.38, Pro: 12.90
-
SS30 Flood
- White SKU - Sport: DD8258, Pro: DD8270
- Yellow SKU - Sport: DD8260, Pro: DD8272
- Raw (lumens) - Sport: 11064, Pro: 37632
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts): Sport: 120, Pro: 165
- Current (amps @ 12.8V): Sport: 9.38, Pro: 12.90
-
SS30 SAE Driving
- White SKU - Sport: DD8252, Pro: DD8264
- Yellow SKU - Sport: DD8254, Pro: DD8266
- Raw (lumens) - Sport: 11064, Pro: 37632
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts): Sport: 120, Pro: 165
- Current (amps @ 12.8V): Sport: 9.38, Pro: 12.90
-

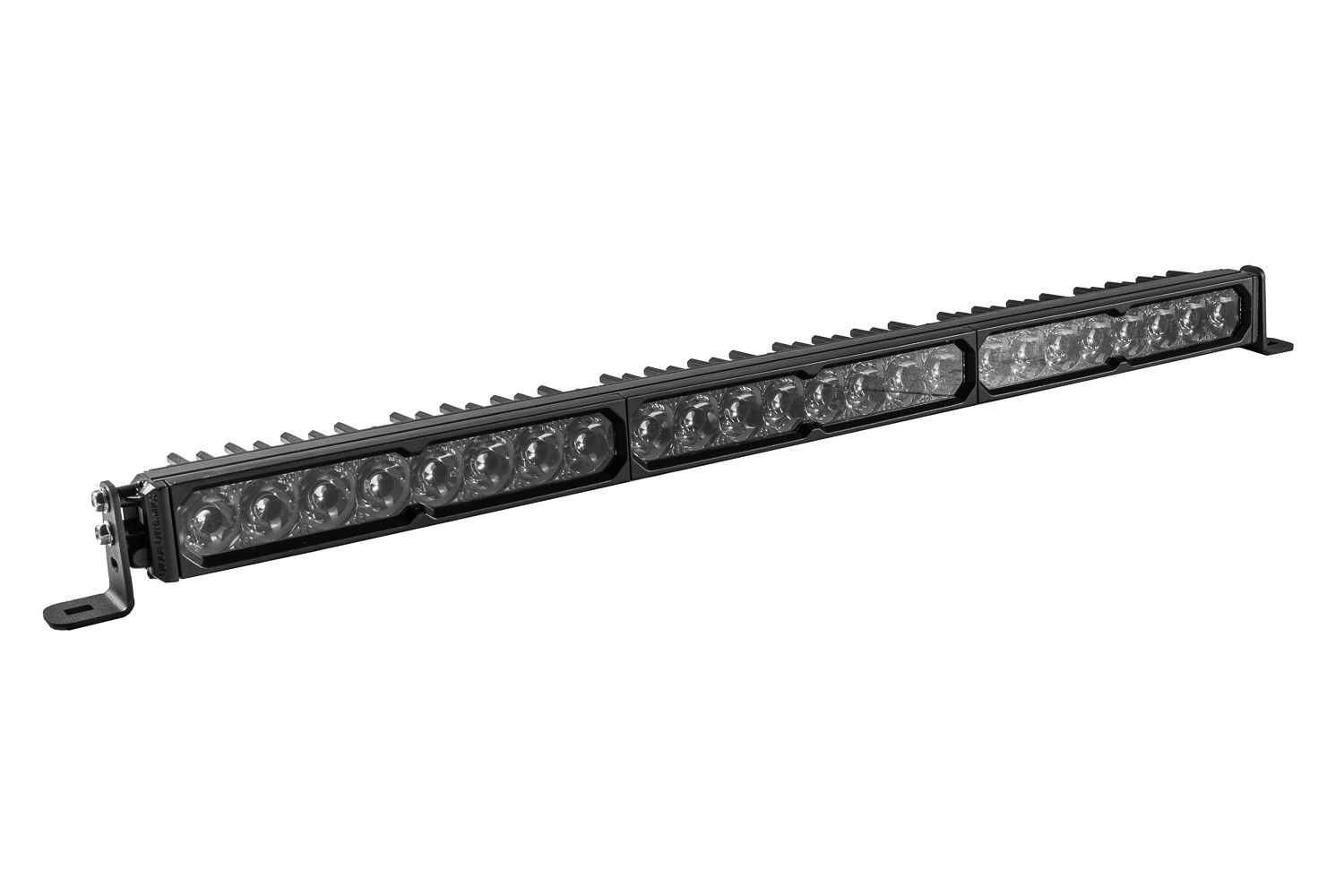

SS30 Spot
- White SKU - Sport: DD8261, Pro: DD8273
- Yellow SKU - Sport: DD8263, Pro: DD8275
- Raw (lumens) - Sport: 11064, Pro: 37632
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts): Sport: 120, Pro: 165
- Current (amps @ 12.8V): Sport: 9.38, Pro: 12.90
-
SS30 Dual Color
- SKU - Sport: DD8375, Pro: DD8377
- Raw (lumens) - Sport: 11064, Pro: 37632
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts): Sport: 120, Pro: 165
- Current (amps @ 12.8V): Sport: 9.38, Pro: 12.90
SS40 Light Bars
-
SS40 Combo
- White SKU - Sport: DD8381, Pro: DD8395
- Yellow SKU - Sport: DD8383, Pro: DD8397
- Raw (lumens) - Sport: 14752, Pro: 50176
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts): Sport: 164, Pro: 225
- Current (amps @ 12.8V): Sport: 12.90, Pro: 17.58
-
SS40 Flood
- White SKU - Sport: DD8386, Pro: DD8400
- Yellow SKU - Sport: DD8388, Pro: DD8402
- Raw (lumens) - Sport: 14752, Pro: 50176
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts): Sport: 164, Pro: 225
- Current (amps @ 12.8V): Sport: 12.90, Pro: 17.58
-
SS40 SAE Driving
- White SKU - Sport: DD8378, Pro: DD8392
- Yellow SKU - Sport: DD8380, Pro: DD8394
- Raw (lumens) - Sport: 14752, Pro: 50176
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts): Sport: 164, Pro: 225
- Current (amps @ 12.8V): Sport: 12.90, Pro: 17.58
-

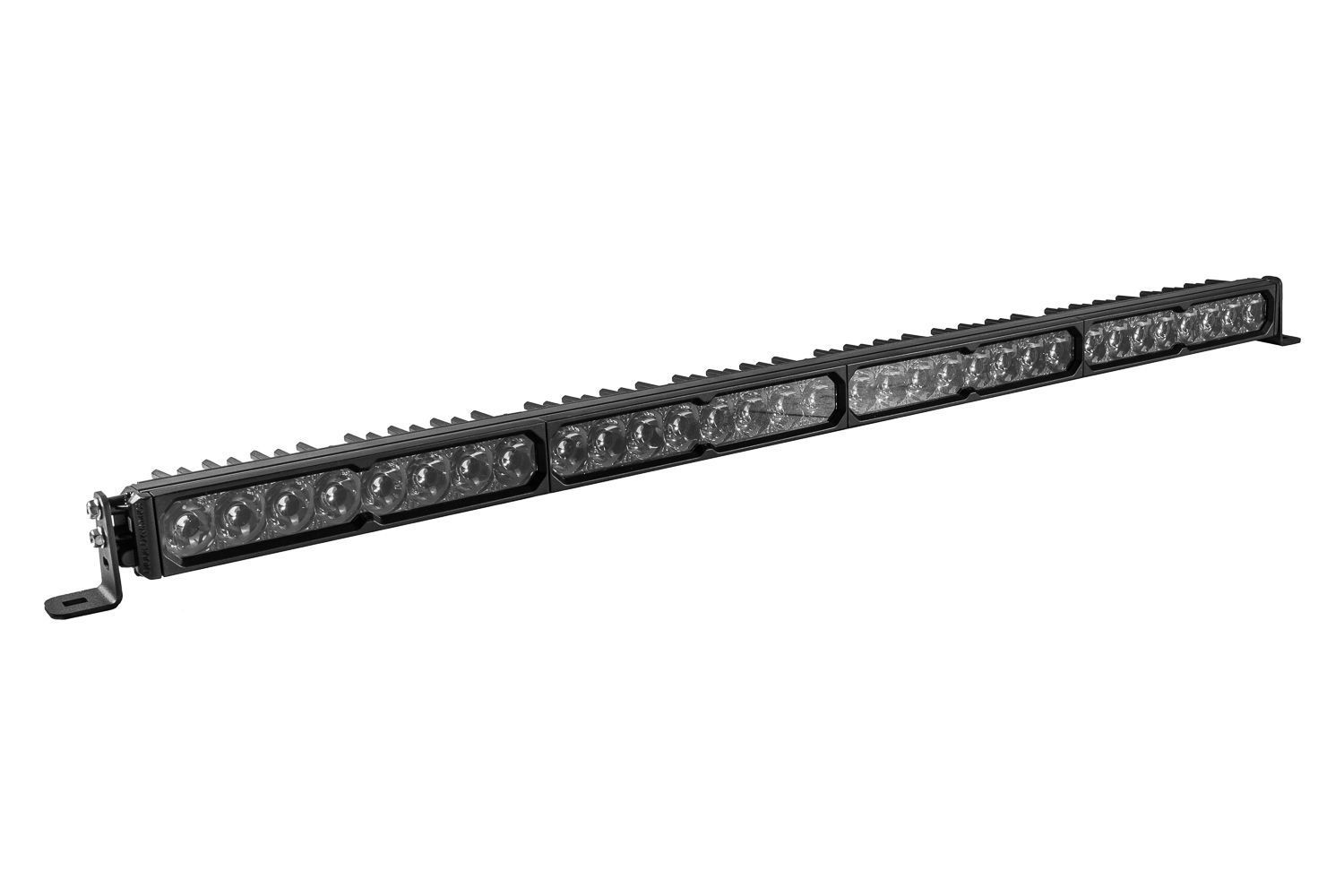

SS40 Spot
- White SKU - Sport: DD8389, Pro: DD8403
- Yellow SKU - Sport: DD8391, Pro: DD8405
- Raw (lumens) - Sport: 14752, Pro: 50176
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts): Sport: 164, Pro: 225
- Current (amps @ 12.8V): Sport: 12.90, Pro: 17.58
-
SS40 Dual Color
- SKU - Sport: DD8385, Pro: DD8399
- Raw (lumens) - Sport: 14752, Pro: 50176
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts): Sport: 165, Pro: 225
- Current (amps @ 12.8V): Sport: 12.90, Pro: 17.58
SS50 Light Bars
-
SS50 Combo
- White SKU - Sport: DD8409, Pro: DD8423
- Yellow SKU - Sport: DD8411, Pro: DD8425
- Raw (lumens) - Sport: 18440, Pro: 62720
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts): Sport: 212, Pro: 295
- Current (amps @ 12.8V): Sport: 16.56, Pro: 23.05
-

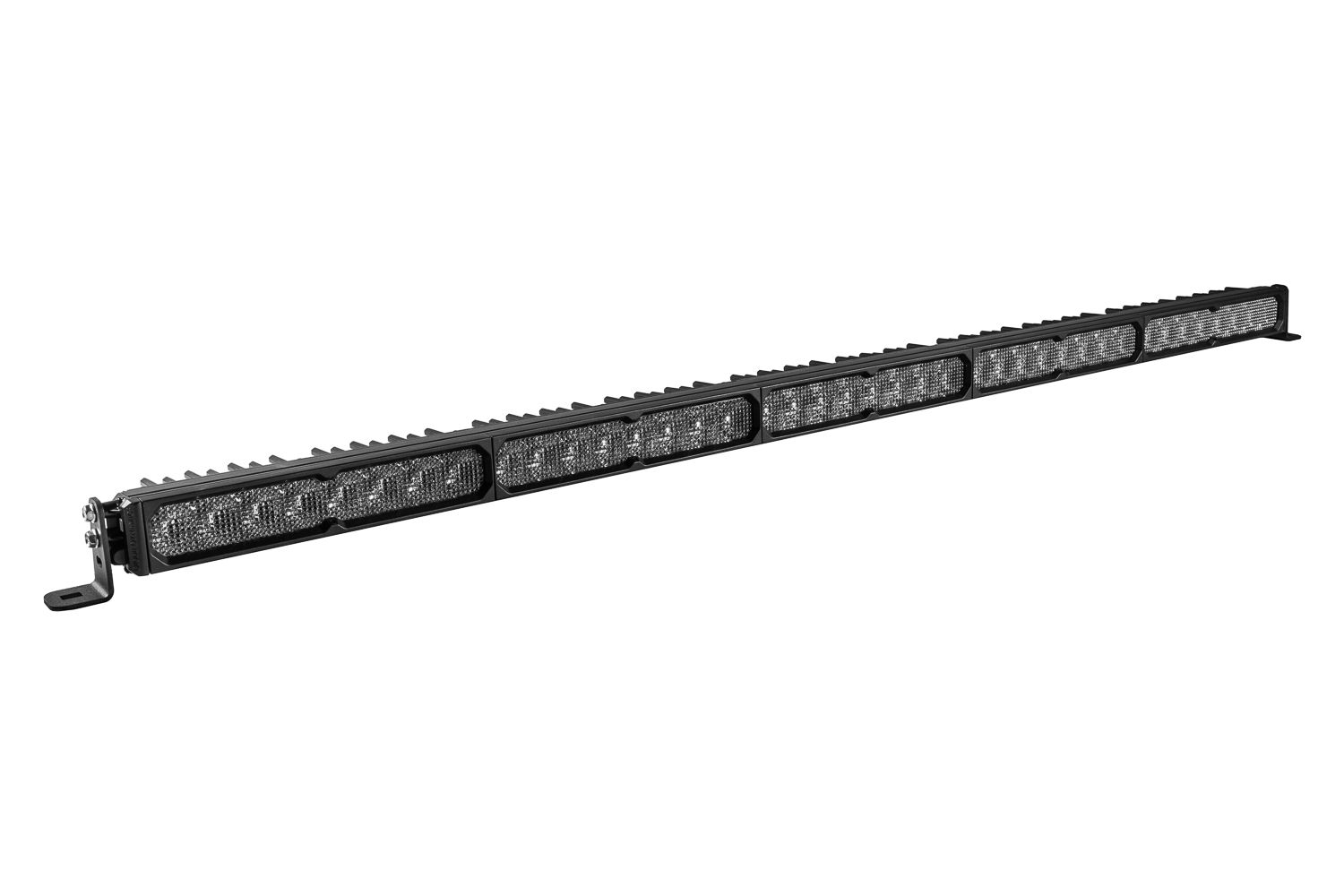

SS50 Flood
- White SKU - Sport: DD8414, Pro: DD8428
- Yellow SKU - Sport: DD8416, Pro: DD8430
- Raw (lumens) - Sport: 18440, Pro: 62720
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts): Sport: 212, Pro: 295
- Current (amps @ 12.8V): Sport: 16.56, Pro: 23.05
-
SS50 SAE Driving
- White SKU - Sport: DD8406, Pro: DD8420
- Yellow SKU - Sport: DD8408, Pro: DD8422
- Raw (lumens) - Sport: 18440, Pro: 62720
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts): Sport: 212, Pro: 295
- Current (amps @ 12.8V): Sport: 16.56, Pro: 23.05
-

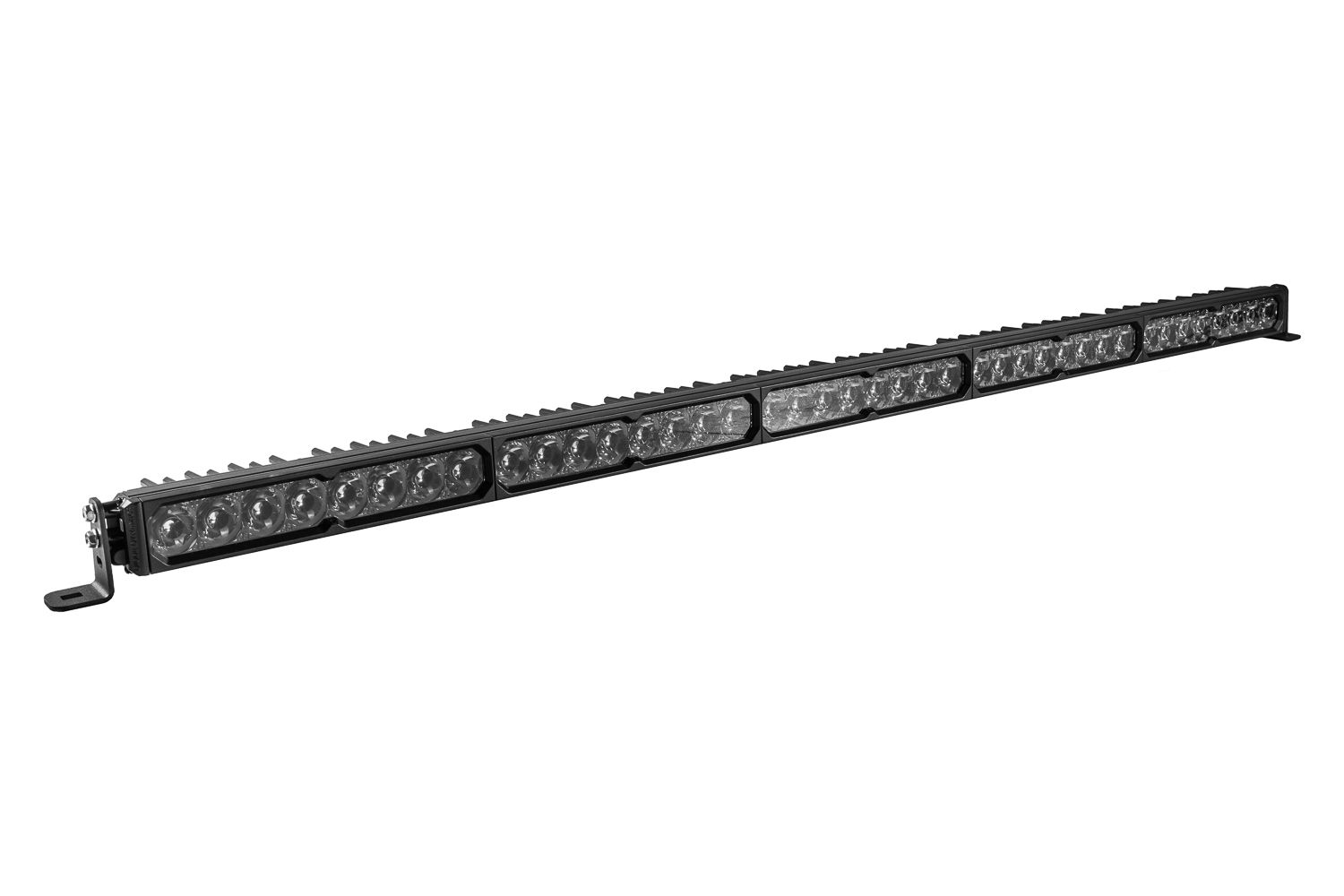

SS50 Spot
- White SKU - Sport: DD8417, Pro: DD8431
- Yellow SKU - Sport: DD8419, Pro: DD8433
- Raw (lumens) - Sport: 18440, Pro: 62720
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts): Sport: 212, Pro: 295
- Current (amps @ 12.8V): Sport: 16.56, Pro: 23.05
-
SS50 Dual Color
- SKU - Sport: DD8413, Pro: DD8427
- Raw (lumens) - Sport: 18440, Pro: 62720
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-30V
- Power (watts): Sport: 212, Pro: 295
- Current (amps @ 12.8V): Sport: 16.56, Pro: 23.05
SS50 Crosslink Light Bars
-

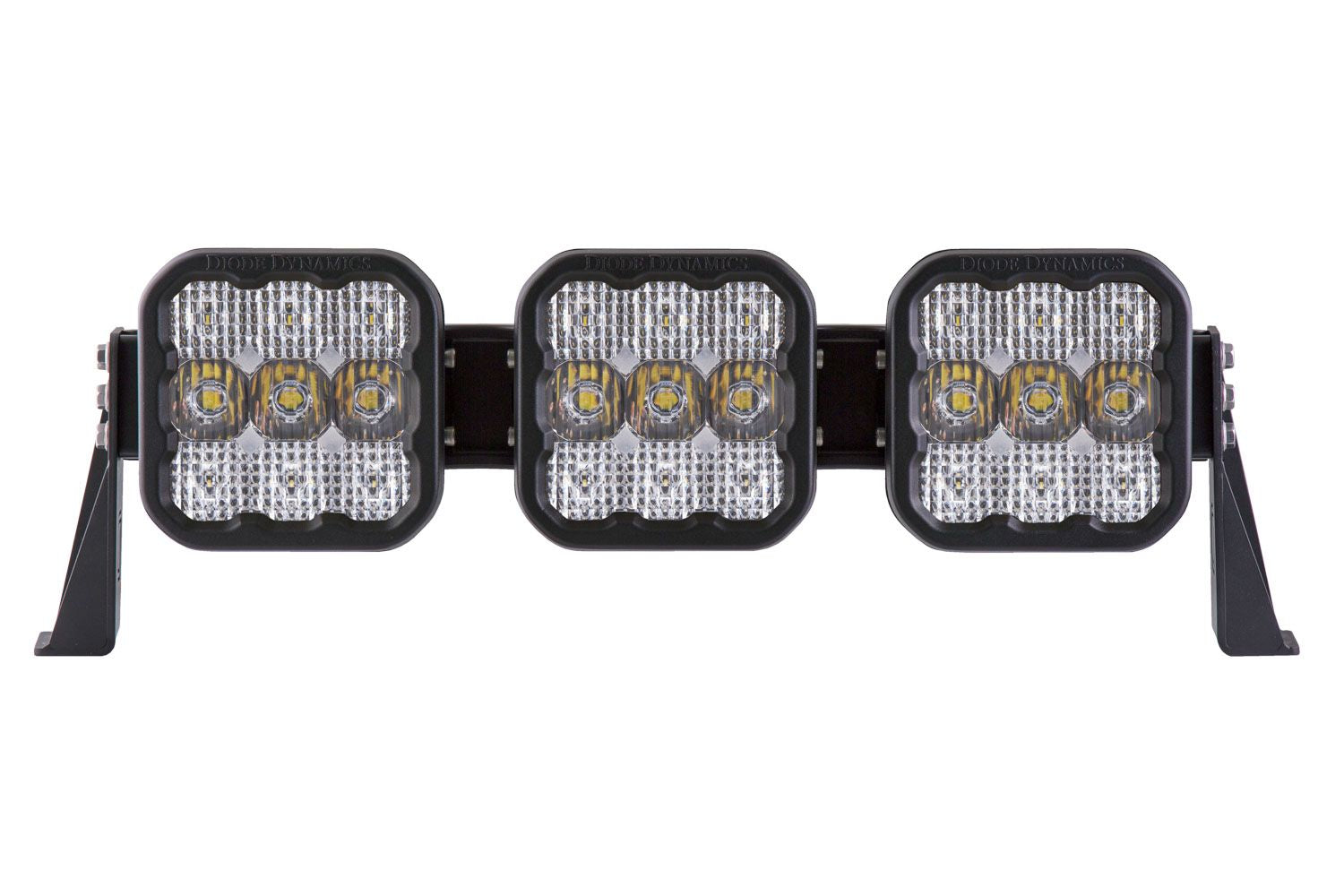

3 Pod Combo
- White SKU - Sport: DD6792, Pro: DD7238
- Yellow SKU - Sport: DD6793, Pro: DD7239
- Raw (lumens) Per Pod - Sport: 4800, Pro: 9700
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-16V
- Power (watts) Per Pod: Sport: 40, Pro: 90
- Current (amps @ 12.8V) Per Pod: Sport: 2.8, Pro: 6.7
-
3 Pod Driving
- White SKU - Sport: DD7204, Pro: DD7250
- Yellow SKU - Sport: DD7205, Pro: DD7251
- Raw (lumens) Per Pod - Sport: 4800, Pro: 9700
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-16V
- Power (watts) Per Pod : Sport: 40, Pro: 90
- Current (amps @ 12.8V) Per Pod: Sport: 2.8, Pro: 6.7
-

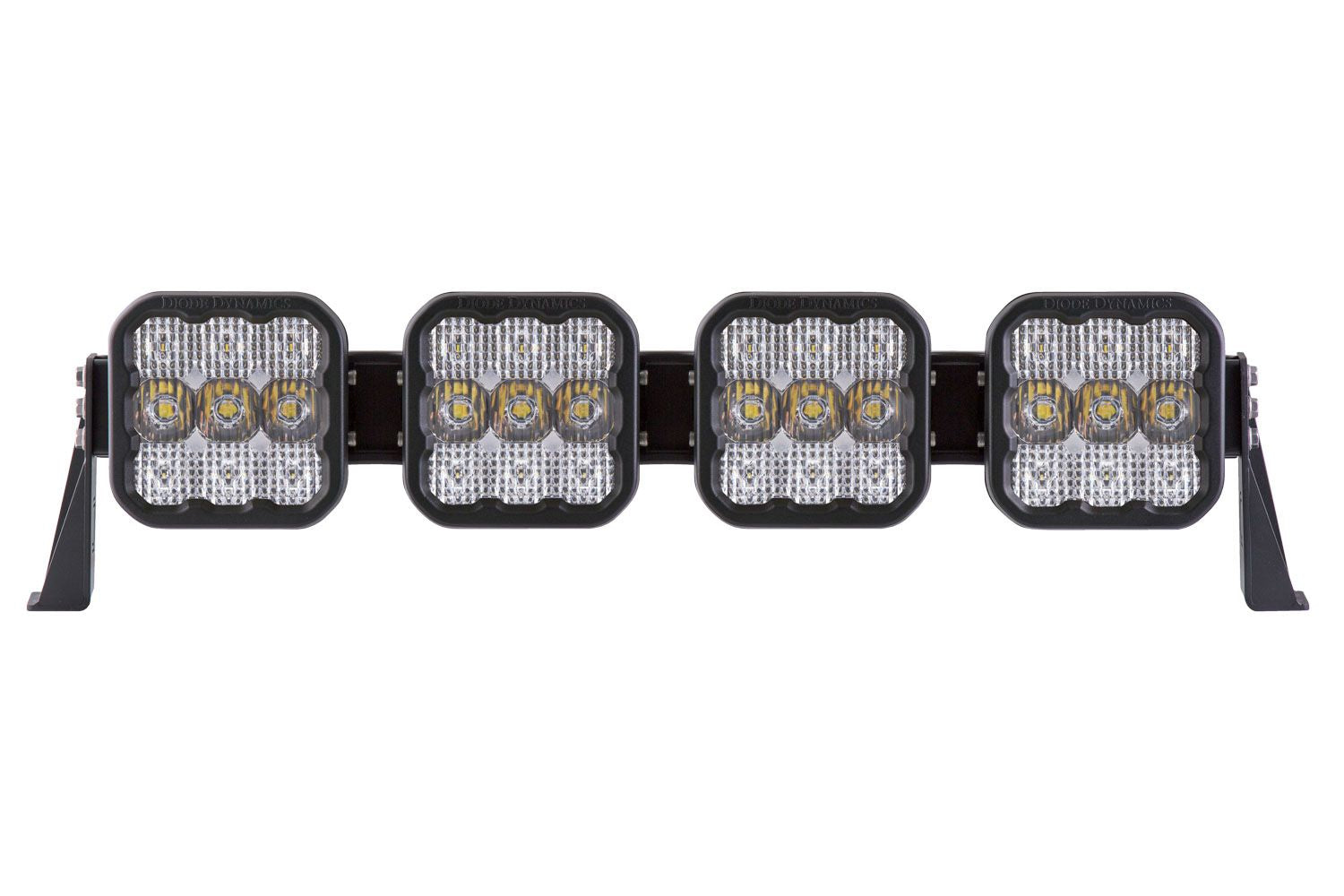

4 Pod Combo
- White SKU - Sport: DD6794, Pro: DD7240
- Yellow SKU - Sport: DD6795, Pro: DD7241
- Raw (lumens) Per Pod - Sport: 4800, Pro: 9700
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-16V
- Power (watts) Per Pod: Sport: 40, Pro: 90
- Current (amps @ 12.8V) Per Pod: Sport: 2.8, Pro: 6.7
-
4 Pod Driving
- White SKU - Sport: DD7206, Pro: DD7252
- Yellow SKU - Sport: DD7207, Pro: DD7253
- Raw (lumens) Per Pod - Sport: 4800, Pro: 9700
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-16V
- Power (watts) Per Pod: Sport: 40, Pro: 90
- Current (amps @ 12.8V) Per Pod: Sport: 2.8, Pro: 6.7
-

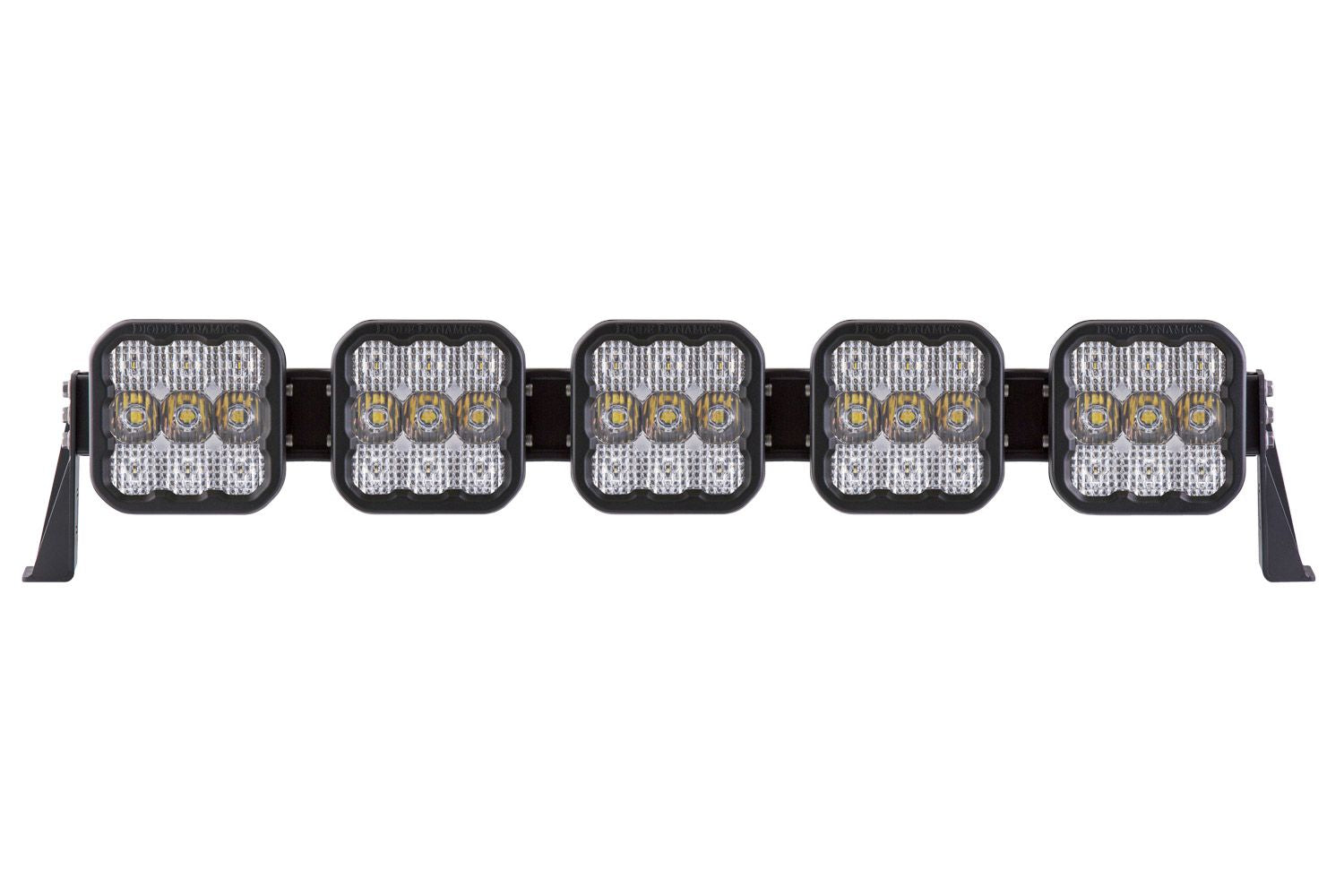

5 Pod Combo
- White SKU - Sport: DD6796, Pro: DD7242
- Yellow SKU - Sport: DD6797, Pro: DD7243
- Raw (lumens) Per Pod - Sport: 4800, Pro: 9700
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-16V
- Power (watts) Per Pod: Sport: 40, Pro: 90
- Current (amps @ 12.8V) Per Pod: Sport: 2.8, Pro: 6.7
-
5 Pod Driving
- White SKU - Sport: DD7208, Pro: DD7254
- Yellow SKU - Sport: DD7209, Pro: DD7255
- Raw (lumens) Per Pod - Sport: 4800, Pro: 9700
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-16V
- Power (watts) Per Pod: Sport: 40, Pro: 90
- Current (amps @ 12.8V) Per Pod: Sport: 2.8, Pro: 6.7
-

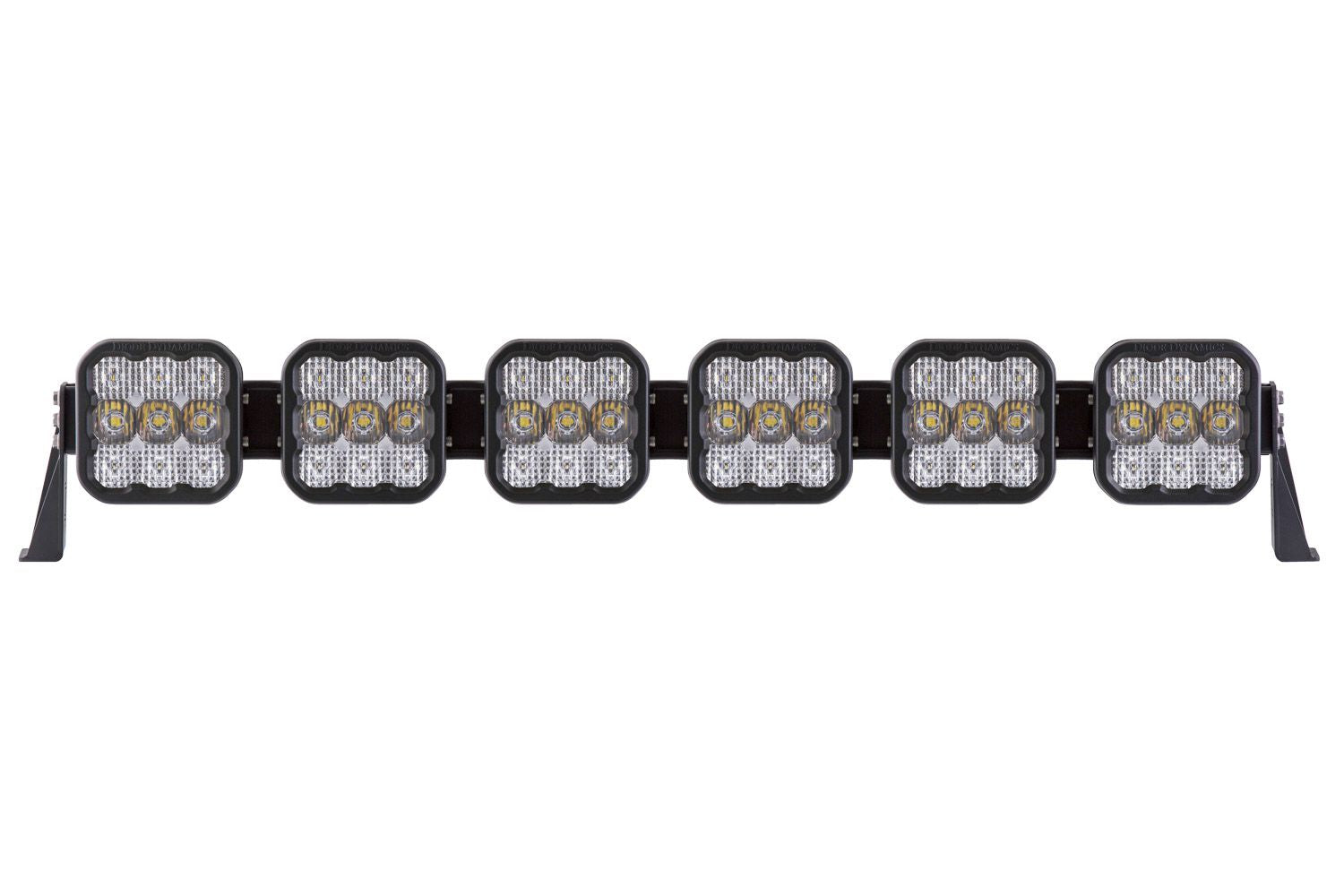

6 Pod Combo
- White SKU - Sport: DD6798, Pro: DD7244
- Yellow SKU - Sport: DD6799, Pro: DD7245
- Raw (lumens) Per Pod - Sport: 4800, Pro: 9700
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-16V
- Power (watts) Per Pod: Sport: 40, Pro: 90
- Current (amps @ 12.8V) Per Pod: Sport: 2.8, Pro: 6.7
-
6 Pod Driving
- White SKU - Sport: DD7210, Pro: DD7256
- Yellow SKU - Sport: DD7211, Pro: DD7257
- Raw (lumens) Per Pod - Sport: 4800, Pro: 9700
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-16V
- Power (watts) Per Pod: Sport: 40, Pro: 90
- Current (amps @ 12.8V) Per Pod: Sport: 2.8, Pro: 6.7
-

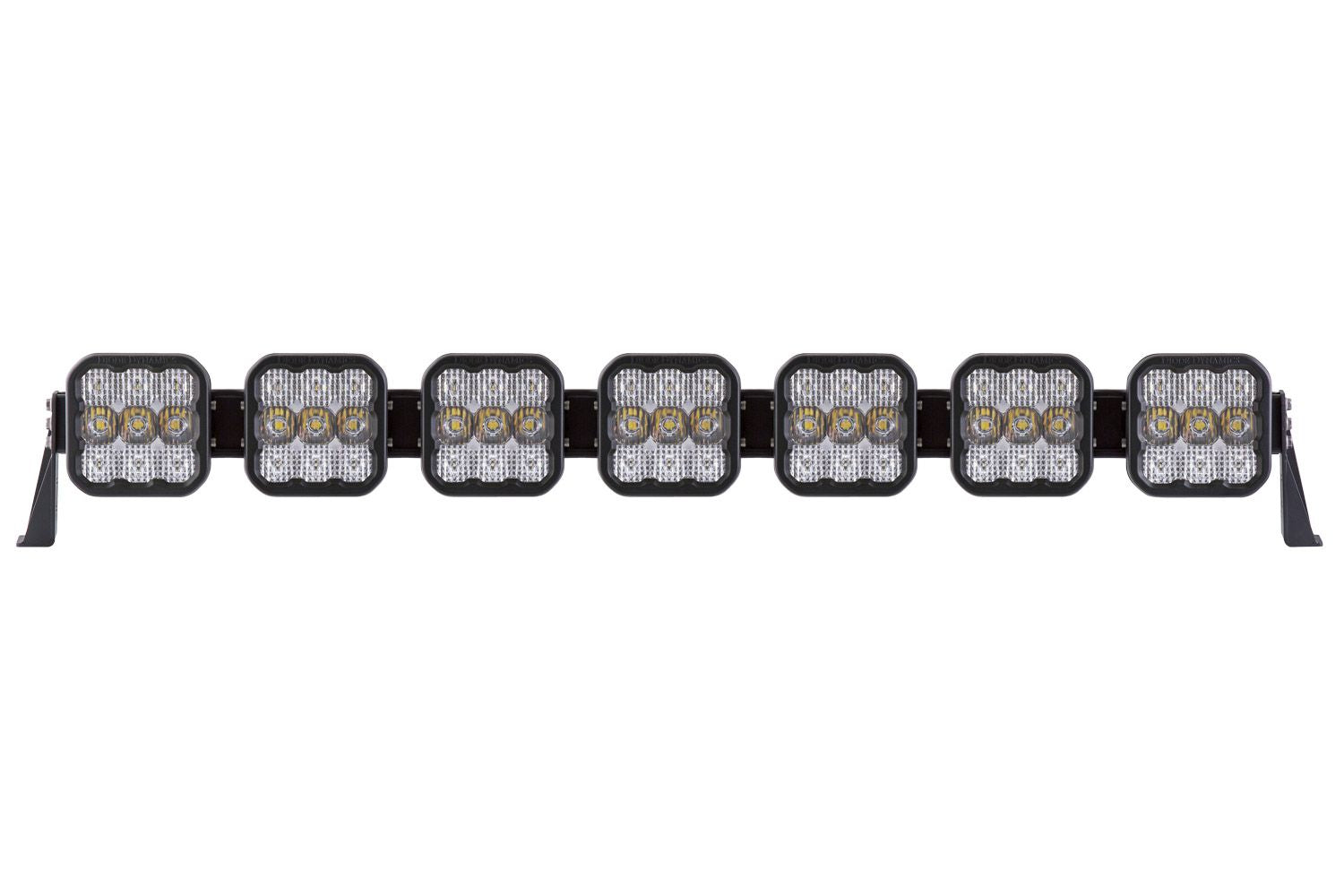

7 Pod Combo
- White SKU - Sport: DD6800, Pro: DD7246
- Yellow SKU - Sport: DD6801, Pro: DD7247
- Raw (lumens) Per Pod - Sport: 4800, Pro: 9700
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-16V
- Power (watts) Per Pod: Sport: 40, Pro: 90
- Current (amps @ 12.8V) Per Pod: Sport: 2.8, Pro: 6.7
-
7 Pod Driving
- White SKU - Sport: DD7212, Pro: DD7258
- Yellow SKU - Sport: DD7213, Pro: DD7259
- Raw (lumens) Per Pod - Sport: 4800, Pro: 9700
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-16V
- Power (watts) Per Pod: Sport: 40, Pro: 90
- Current (amps @ 12.8V) Per Pod: Sport: 2.8, Pro: 6.7
-
8 Pod Combo
- White SKU - Sport: DD6802, Pro: DD7248
- Yellow SKU - Sport: DD6803, Pro: DD7249
- Raw (lumens) Per Pod - Sport: 4800, Pro: 9700
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-16V
- Power (watts) Per Pod: Sport: 40, Pro: 90
- Current (amps @ 12.8V) Per Pod: Sport: 2.8, Pro: 6.7
-
8 Pod Driving
- White SKU - Sport: DD7214, Pro: DD7260
- Yellow SKU - Sport: DD7215, Pro: DD7261
- Raw (lumens) Per Pod - Sport: 4800, Pro: 9700
- Color Temp (CCT): White 6000K, Yellow 3000K
- Operating Voltage: 9-16V
- Power (watts) Per Pod: Sport: 40, Pro: 90
- Current (amps @ 12.8V) Per Pod: Sport: 2.8, Pro: 6.7
