Diode Dynamics Pod Tech Specs

SSC1 Pods

  • SSC1 Sport Flood:

    • White SKU - DD6445P
    • Yellow SKU - DD6448P
    • White Measured Output(lumens) - 1030 lm
    • Yellow Measured Output(lumens) - 1000 lm
    • White Color Temp (CCT):6000K
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 12.8, Backlight: 0.3
    • Operating Voltage:9-16V
    • Current (amps @ 12.8V): Main Beam: 1, Backlight: 0.024

    SSC1 Sport Data Sheet

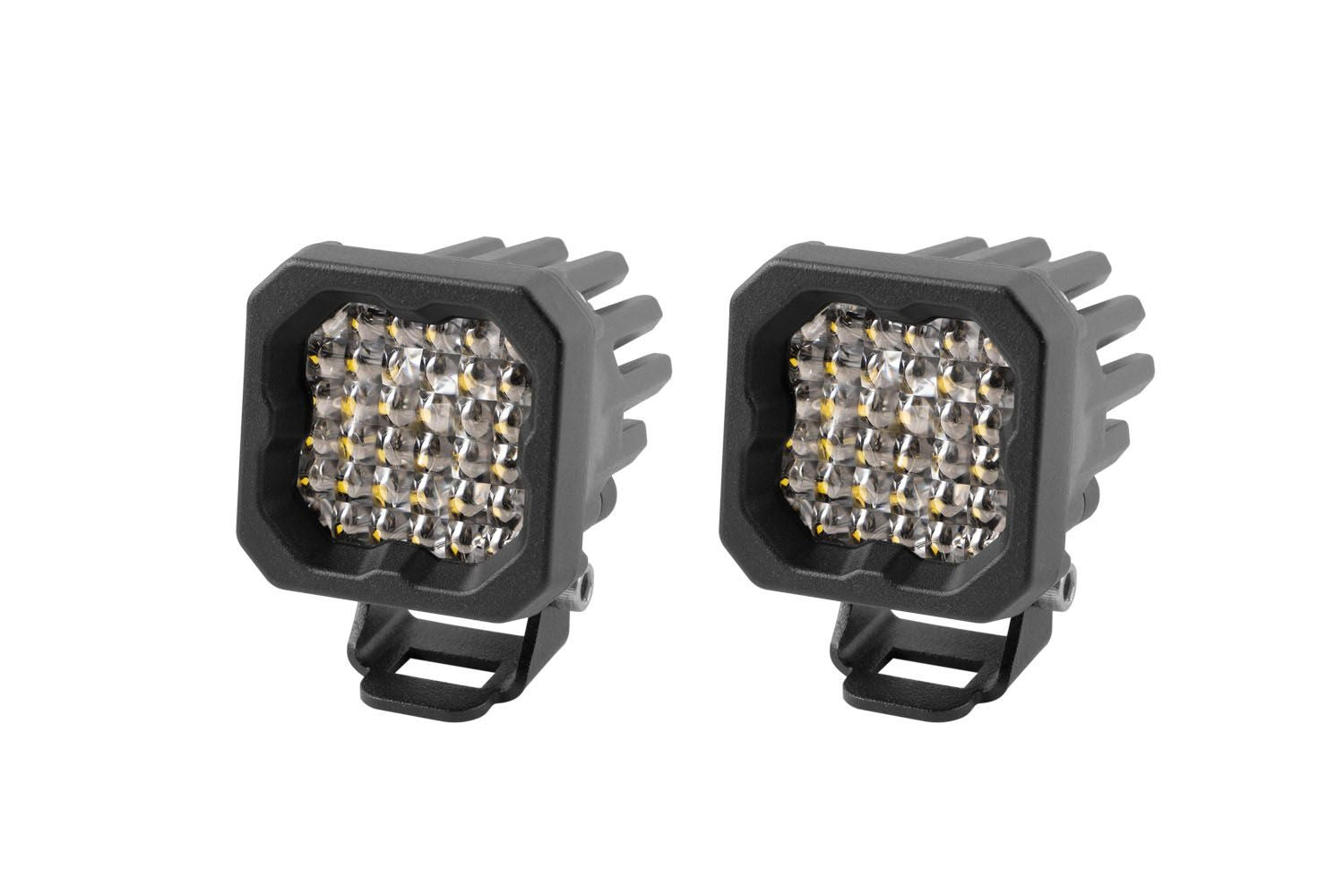

  • SSC1 Pro Flood:

    • White SKU - DD6460P
    • Yellow SKU - DD6463P
    • White Measured Output(lumens) - 2300 lm
    • Yellow Measured Output(lumens) - 2200 lm
    • White Color Temp (CCT):6000K
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 19, Backlight: 0.3
    • Operating Voltage:9-16V
    • Current (amps @ 12.8V): Main Beam: 1.5, Backlight: 0.024

    SSC1 Pro Data Sheet

  • SSC1 Sport Spot:

    • White SKU - DD6450P
    • Yellow SKU - DD6453P
    • White Measured Output(lumens) - 1030 lm
    • Yellow Measured Output(lumens) - 1000 lm
    • White Color Temp (CCT):6000K
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 12.8, Backlight: 0.3
    • Operating Voltage:9-16V
    • Current (amps @ 12.8V): Main Beam: 1, Backlight: 0.024

    SSC1 Sport Data Sheet

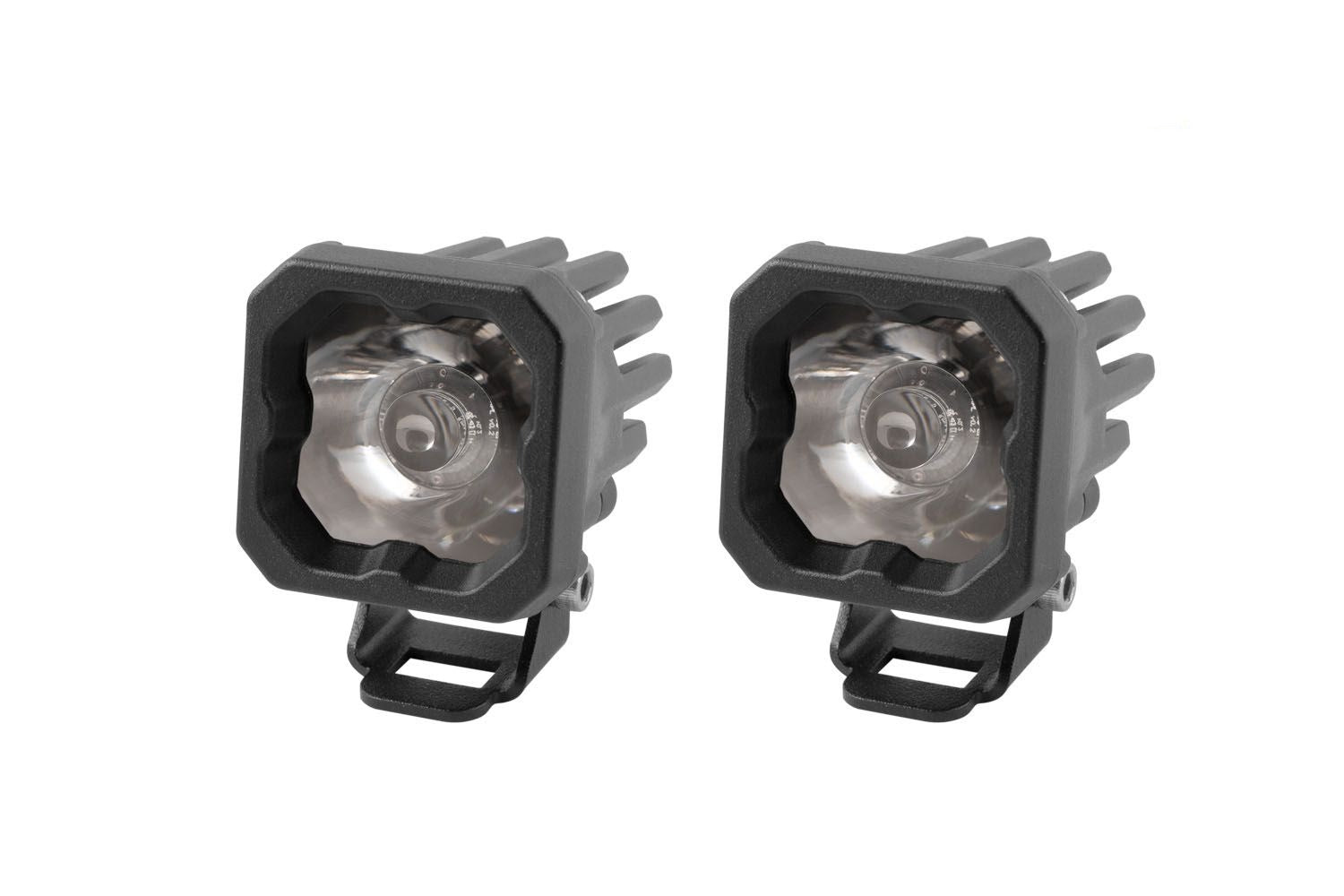

  • SSC1 Pro Spot:

    • White SKU - DD6465P
    • Yellow SKU - DD6468P
    • White Measured Output(lumens) - 2300 lm
    • Yellow Measured Output(lumens) - 2200 lm
    • White Color Temp (CCT):6000K
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 19, Backlight: 0.3
    • Operating Voltage:9-16V
    • Current (amps @ 12.8V): Main Beam: 1.5, Backlight: 0.024

    SSC1 Pro Data Sheet

  • SSC1 Sport Wide:

    • White SKU - DD6440P
    • Yellow SKU - DD6443P
    • White Measured Output(lumens) - 1030 lm
    • Yellow Measured Output(lumens) - 1000 lm
    • White Color Temp (CCT):6000K
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 12.8, Backlight: 0.3
    • Operating Voltage:9-16V
    • Current (amps @ 12.8V): Main Beam: 1, Backlight: 0.024

    SSC1 Sport Data Sheet

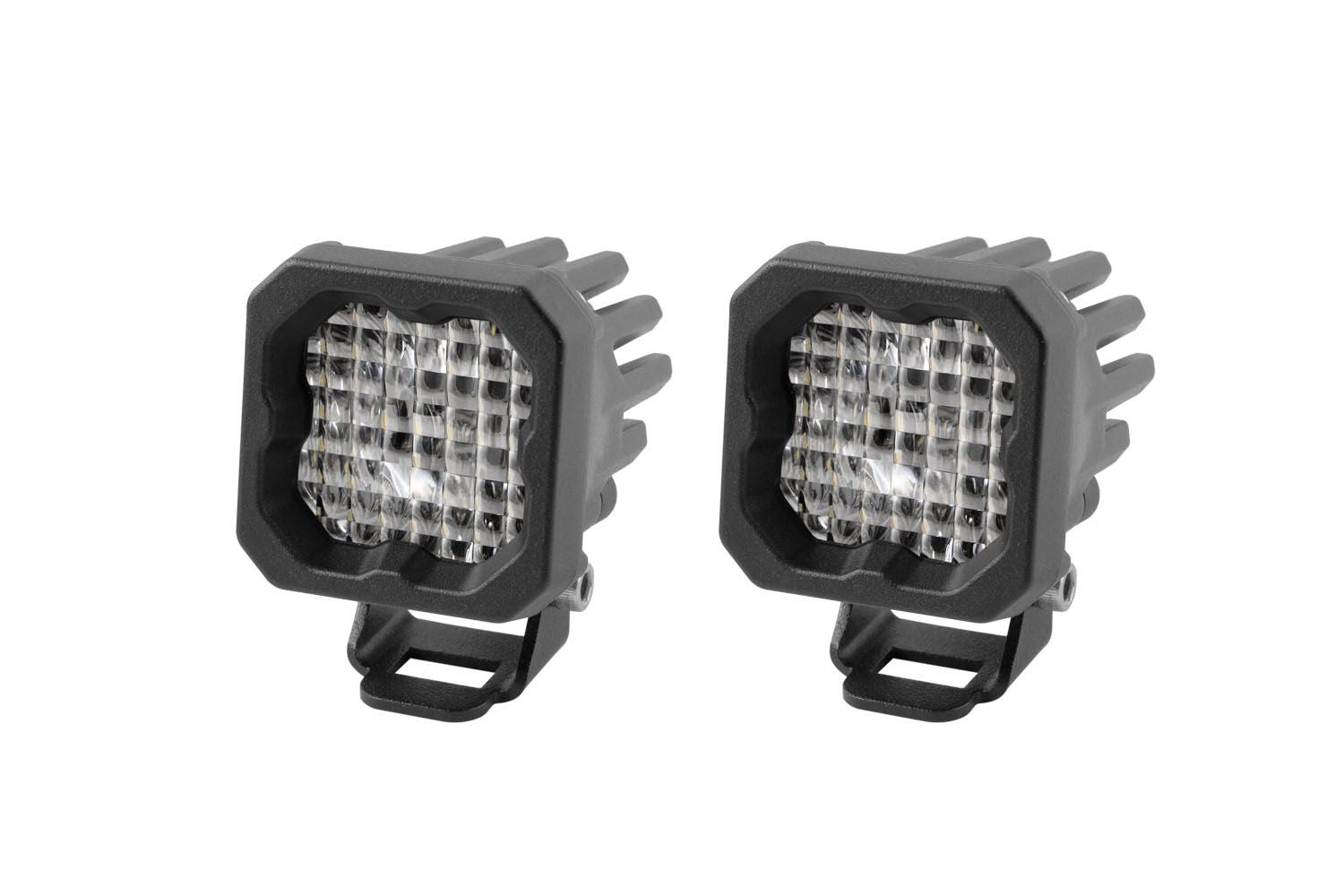

  • SSC1 Pro Wide:

    • White SKU - DD6455P
    • Yellow SKU - DD6458P
    • White Measured Output(lumens) - 2300 lm
    • Yellow Measured Output(lumens) - 2200 lm
    • White Color Temp (CCT):6000K
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 19, Backlight: 0.3
    • Operating Voltage:9-16V
    • Current (amps @ 12.8V): Main Beam: 1.5, Backlight: 0.024

    SSC1 Pro Data Sheet

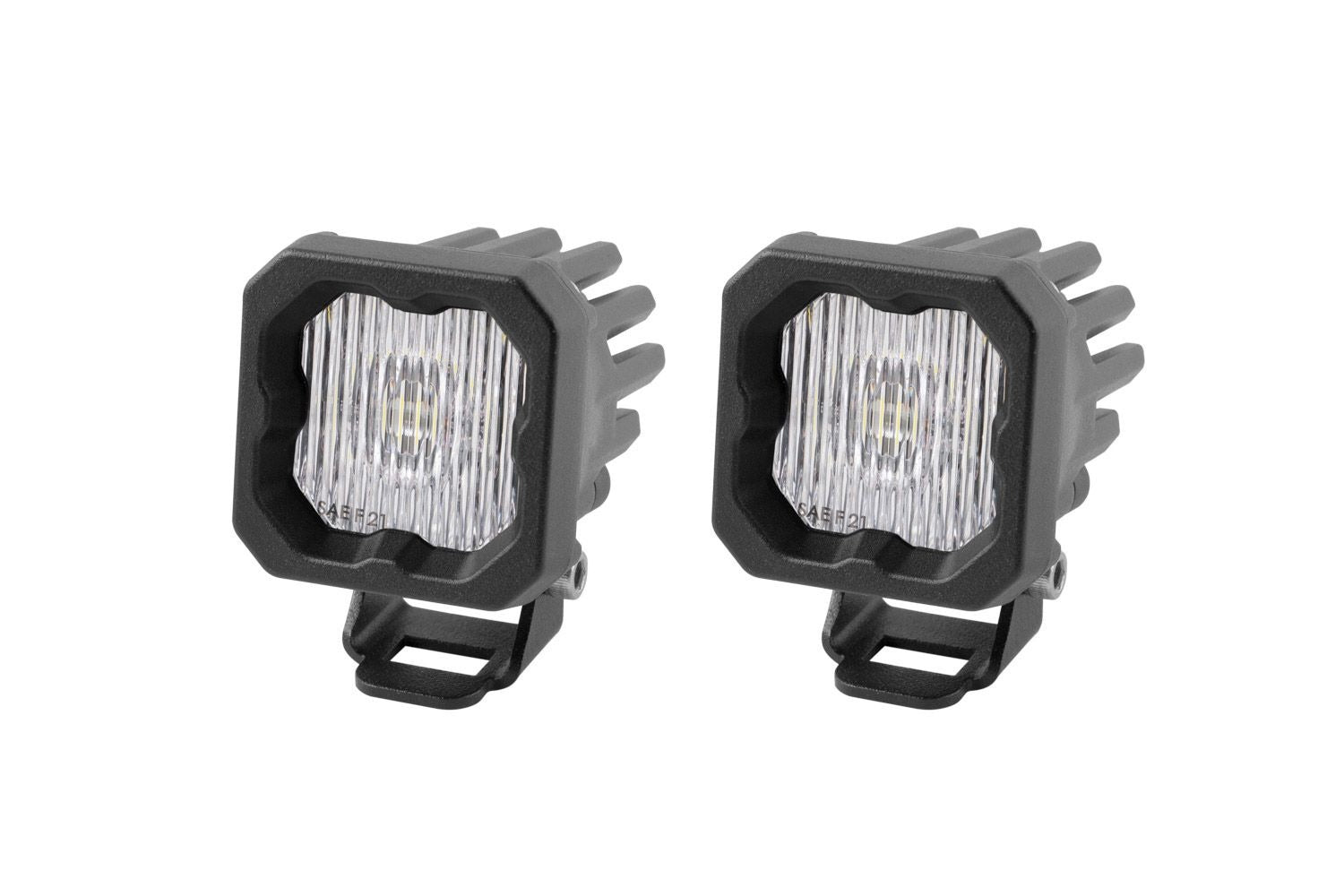

  • SSC1 SAE Fog:

    • White SKU - DD6847P
    • White Measured Output(lumens) - 1980 lm
    • White Color Temp (CCT):6000K
    • Power (watts): Main Beam: 19.2, Backlight: 0.3
    • Operating Voltage:9-16V
    • Current (amps @ 12.8V): Main Beam: 1.5A, Backlight: 0.025A

    SSC1 SAE Fog Data Sheet

  • SSC1 R Flood:

    • White SKU - DD7423P
    • White Measured Output(lumens) - 1450 lm
    • White Color Temp (CCT):6000K
    • Operating Voltage:9-16V

SSC2 2.0 Pods

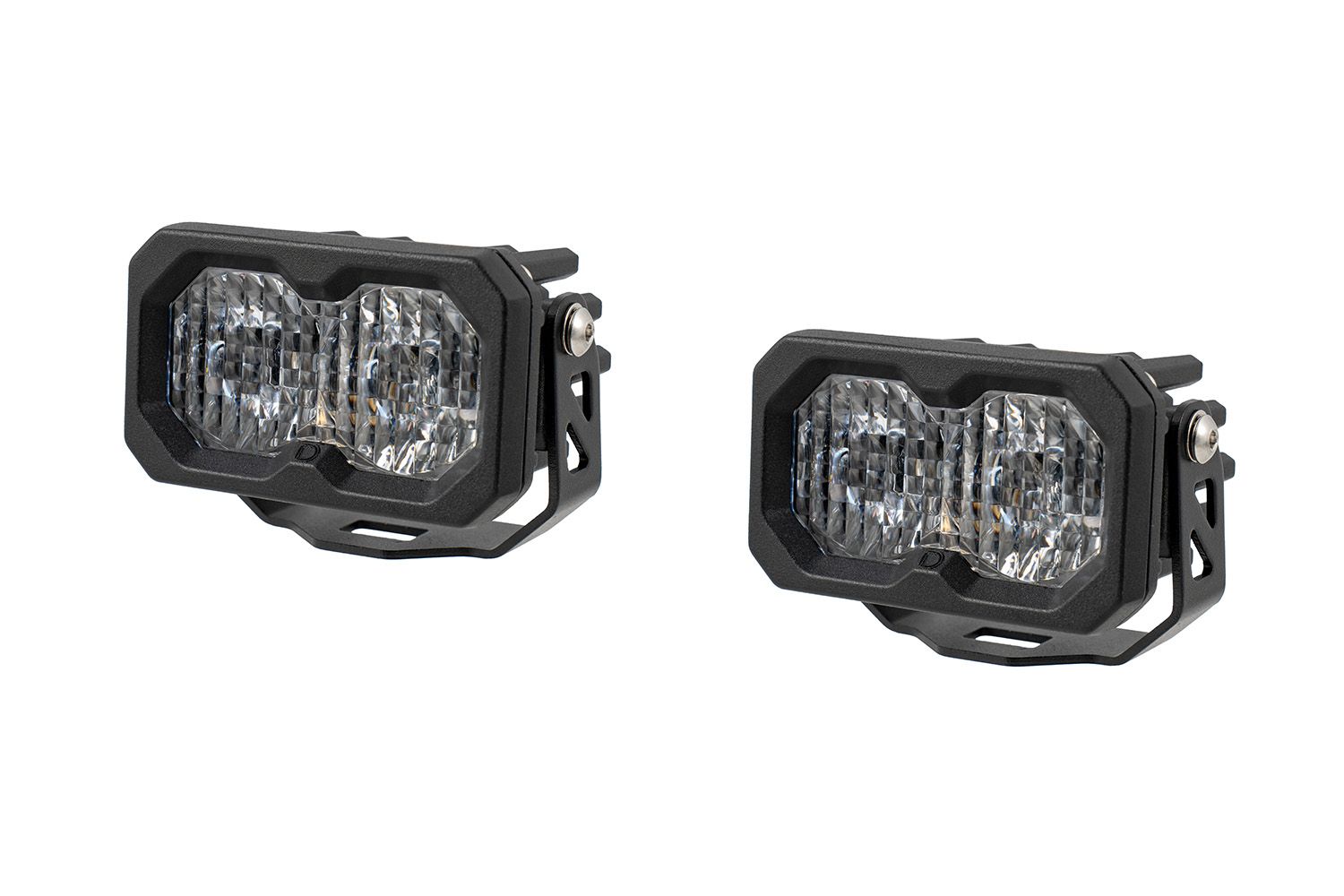

  • SSC2 Sport Combo / Driving:

    • White SKU - DD8092P
    • Yellow SKU - DD8094P
    • White Measured Output(lumens) - 1,190 lm
    • Yellow Measured Output(lumens) - 1300 lm
    • White Color Temp (CCT):6000K
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 15, Backlight: 0.38
    • Operating Voltage:9-30V
    • Current (amps @ 12.8V): Main Beam: 1.17, Backlight: 0.03

  • SSC2 Pro Combo / Driving:

    • White SKU - DD8104P
    • Yellow SKU - DD8106P
    • Measured Output(lumens) - 3140 lm
    • Yellow Measured Output(lumens) - 3140 lm
    • Color Temp (CCT) :6000k
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 23, Backlight: 0.38
    • Operating Voltage:9-30V
    • Current (amps @ 12.8V): Main Beam: 1.8, Backlight: 0.03

  • SSC2 Max Combo / Driving:

    • White SKU - DD8112P
    • Yellow SKU - DD8114P
    • Measured Output(lumens) - 3960 lm
    • Yellow Measured Output(lumens) - 3960 lm
    • Color Temp (CCT) :6000k
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: Main Beam: 30, Backlight: 0.38
    • Operating Voltage:9-30V
    • Current (amps @ 12.8V): Main Beam: 2.3, Backlight: 0.03

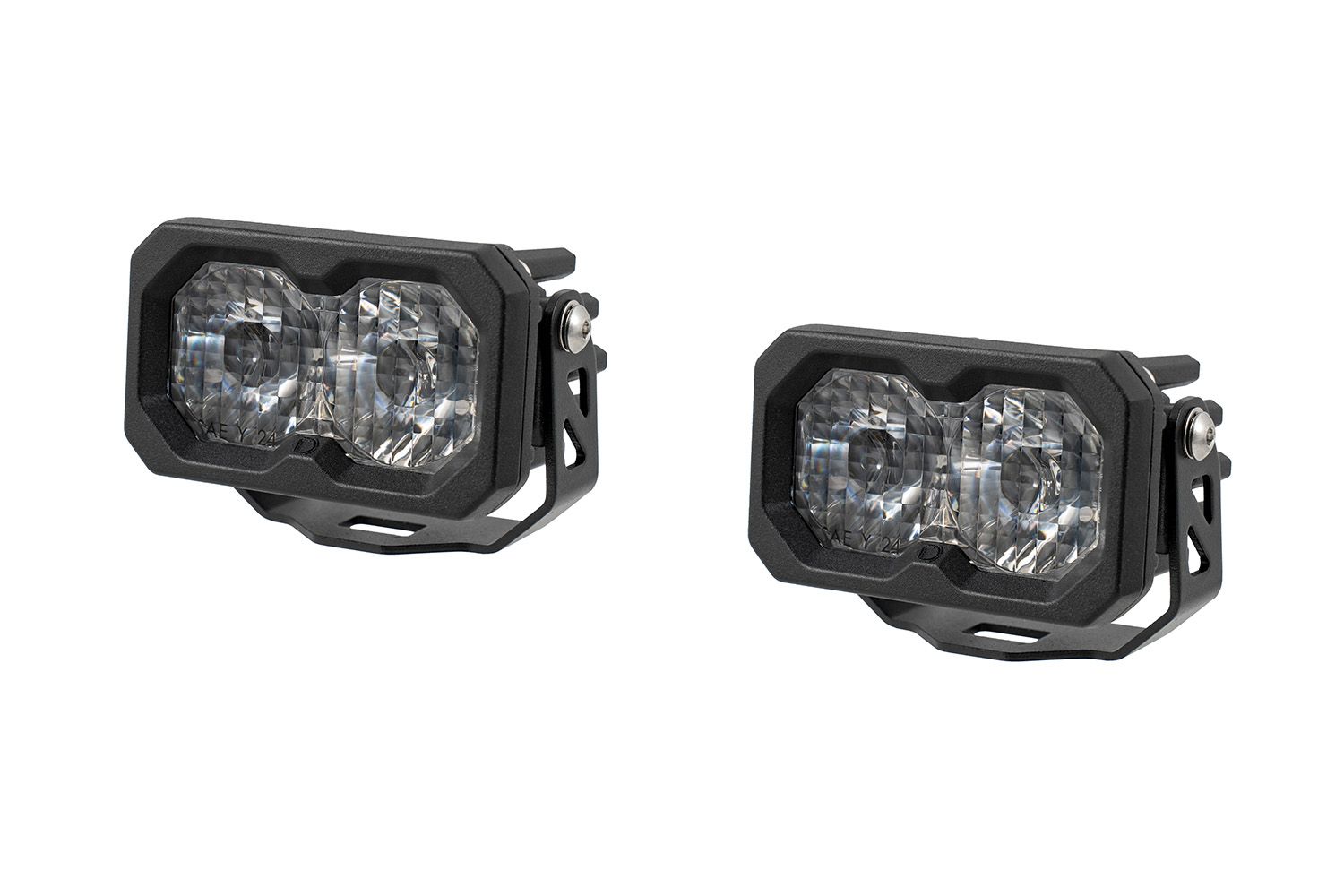

  • SSC2 Sport SAE Driving:

    • White SKU - DD8088P
    • Yellow SKU - DD8089P
    • White Measured Output(lumens) - 1,190 lm
    • Yellow Measured Output(lumens) - 1300 lm
    • White Color Temp (CCT):6000K
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 15, Backlight: 0.38
    • Operating Voltage:9-30V
    • Current (amps @ 12.8V): Main Beam: 1.17, Backlight: 0.03

  • SSC2 Pro SAE Driving:

    • White SKU - DD8100P
    • Yellow SKU - DD8101P
    • Measured Output(lumens) - 3140 lm
    • Yellow Measured Output(lumens) - 3140 lm
    • Color Temp (CCT) :6000k
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 23, Backlight: 0.38
    • Operating Voltage:9-30V
    • Current (amps @ 12.8V): Main Beam: 1.8, Backlight: 0.03

  • SSC2 Max Driving:

    • White SKU - DD8242P
    • Yellow SKU - DD8243P
    • Measured Output(lumens) - 3960 lm
    • Yellow Measured Output(lumens) - 3960 lm
    • Color Temp (CCT) :6000k
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 30, Backlight: 0.38
    • Operating Voltage:9-30V
    • Current (amps @ 12.8V): Main Beam: 2.3, Backlight: 0.03

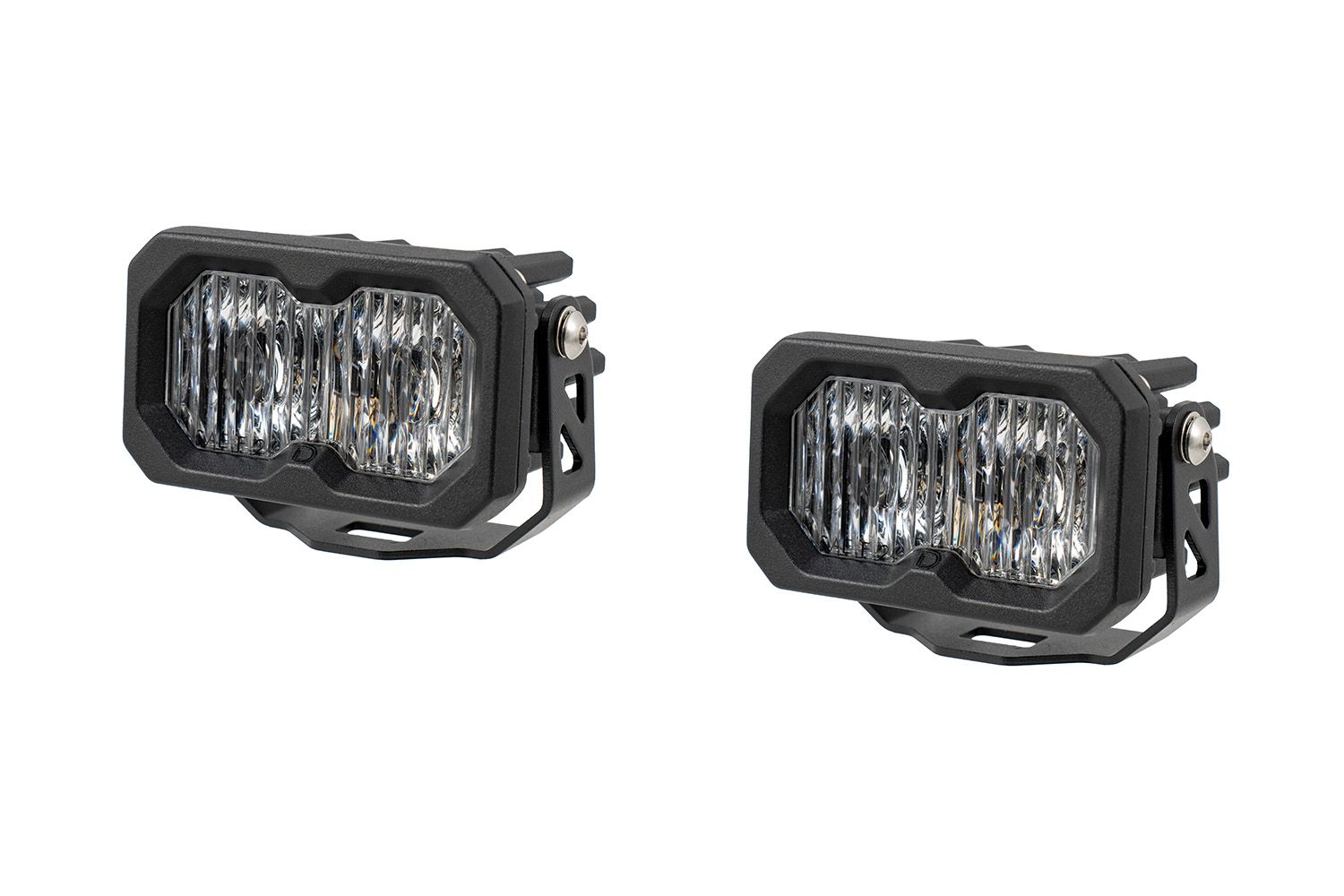

  • SSC2 Sport SAE Fog:

    • White SKU - DD8090P
    • Yellow SKU - DD8091P
    • White Measured Output(lumens) - 1,190 lm
    • Yellow Measured Output(lumens) - 1300 lm
    • White Color Temp (CCT):6000K
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 15, Backlight: 0.38
    • Operating Voltage:9-30V
    • Current (amps @ 12.8V): Main Beam: 1.17, Backlight: 0.03

  • SSC2 Pro SAE Fog:

    • White SKU - DD8102P
    • Yellow SKU - DD8103P
    • Measured Output(lumens) - 3140 lm
    • Yellow Measured Output(lumens) - 3140 lm
    • Color Temp (CCT) :6000k
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 23, Backlight: 0.38
    • Operating Voltage:9-30V
    • Current (amps @ 12.8V): Main Beam: 1.8, Backlight: 0.03

  • SSC2 Max SAE Fog:

    • White SKU - DD8240P
    • Yellow SKU - DD8241P
    • Measured Output(lumens) - 3960 lm
    • Yellow Measured Output(lumens) - 3960 lm
    • Color Temp (CCT) :6000k
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 30, Backlight: 0.38
    • Operating Voltage:9-30V
    • Current (amps @ 12.8V): Main Beam: 2.3, Backlight: 0.03

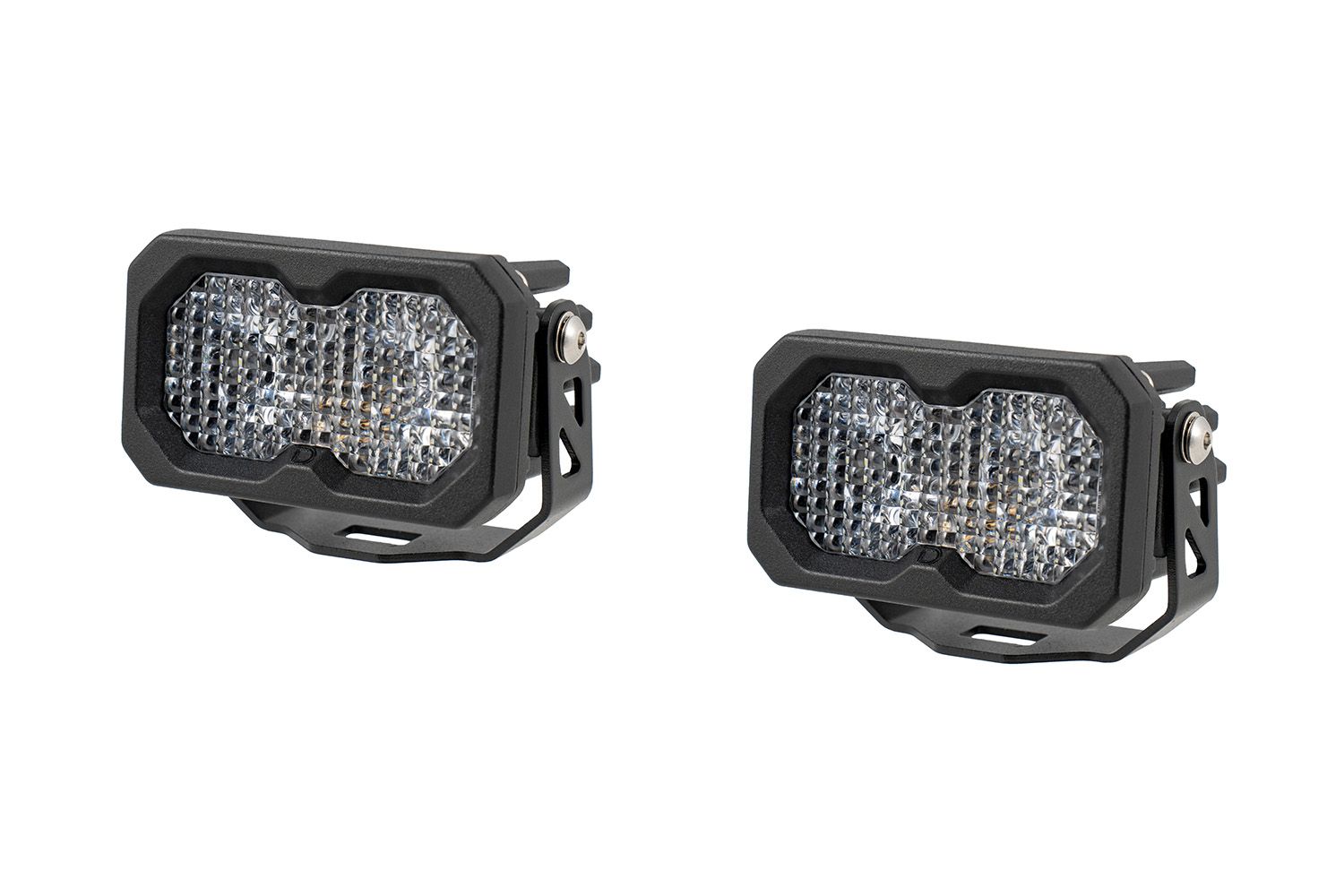

  • SSC2 Sport Flood:

    • White SKU - DD8095P
    • Yellow SKU - DD8097P
    • White Measured Output(lumens) - 1,190 lm
    • Yellow Measured Output(lumens) - 1300 lm
    • White Color Temp (CCT):6000K
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 15, Backlight: 0.38
    • Operating Voltage:9-30V
    • Current (amps @ 12.8V): Main Beam: 1.17, Backlight: 0.03

  • SSC2 Pro Flood:

    • White SKU - DD8107P
    • Yellow SKU - DD8109P
    • Measured Output(lumens) - 3140 lm
    • Yellow Measured Output(lumens) - 3140 lm
    • Color Temp (CCT) :6000k
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 23, Backlight: 0.38
    • Operating Voltage:9-30V
    • Current (amps @ 12.8V): Main Beam: 1.8, Backlight: 0.03

  • SSC2 Max Flood:

    • White SKU - DD8115P
    • Yellow SKU - DD8117P
    • Measured Output(lumens) - 3960 lm
    • Yellow Measured Output(lumens) - 3960 lm
    • Color Temp (CCT) :6000k
    • Power (watts): Main Beam: 30, Backlight: 0.38
    • Operating Voltage:9-30V
    • Current (amps @ 12.8V): Main Beam: 2.3, Backlight: 0.03

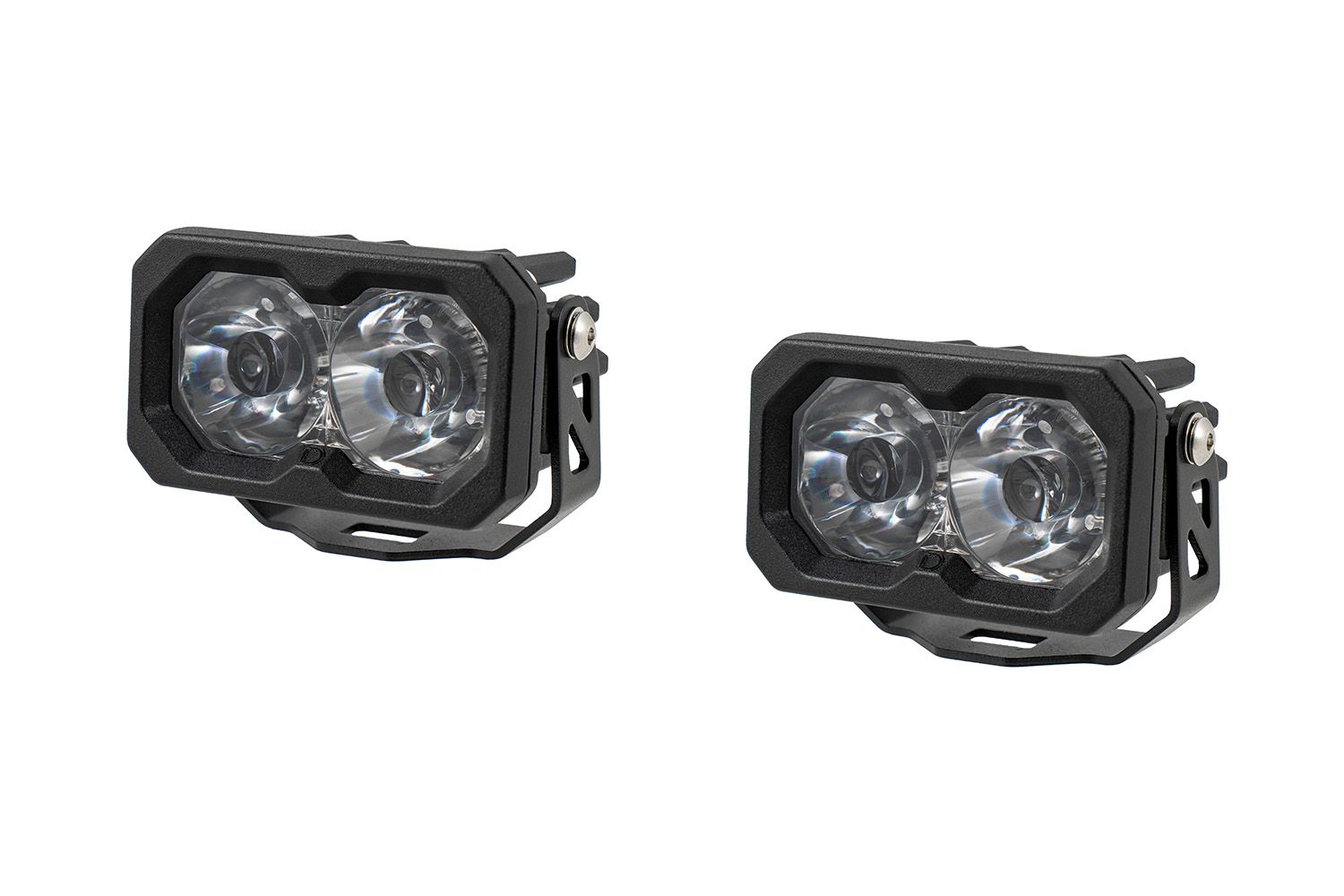

  • SSC2 Sport Spot:

    • White SKU - DD8098P
    • Yellow SKU - DD8099P
    • White Measured Output(lumens) - 1,190 lm
    • Yellow Measured Output(lumens) - 1300 lm
    • White Color Temp (CCT):6000K
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 15, Backlight: 0.38
    • Operating Voltage:9-30V
    • Current (amps @ 12.8V): Main Beam: 1.17, Backlight: 0.03

  • SSC2 Pro Spot:

    • White SKU - DD8110P
    • Yellow SKU - DD8111P
    • Measured Output(lumens) - 3140 lm
    • Yellow Measured Output(lumens) - 3140 lm
    • Color Temp (CCT) :6000k
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 23, Backlight: 0.38
    • Operating Voltage:9-30V
    • Current (amps @ 12.8V): Main Beam: 1.8, Backlight: 0.03

  • SSC2 Max Spot:

    • White SKU - DD8118P
    • Yellow SKU - DD8119P
    • Measured Output(lumens) - 3960 lm
    • Yellow Measured Output(lumens) - 3960 lm
    • Color Temp (CCT) :6000k
    • Power (watts): Main Beam: 30, Backlight: 0.38
    • Operating Voltage:9-30V
    • Current (amps @ 12.8V): Main Beam: 2.3, Backlight: 0.03

  • SSC2R Flood:

    • SKU - DD8450P
    • Measured Output(lumens) - 2900 lm
    • Color Temp (CCT) :6000k
    • Power (watts): Reverse: 18.3, Brake: 3.3, Parking: 0.36
    • Operating Voltage:9-30V
    • Current (amps @ 12.8V): Reverse: 1.43, Brake: 0.25, Parking: 0.03

SS3 Pods

  • SS3 Sport Combo:

    • White SKU - DD6865P
    • Yellow SKU - DD6872P
    • White Measured Output(lumens) - 1,520 lm
    • Yellow Measured Output(lumens) - 1300 lm
    • White Color Temp (CCT):6000K
    • Yellow Color Temp (CCT):3000k
    • Power (watts):Main Beam: 14.5, Backlight: 0.4
    • Operating Voltage:9-16V
    • Current (amps @ 12.8V):Main Beam: 1.1, Backlight: 0.03

    SS3 Sport Data Sheet

  • SS3 Pro Combo:

    • White SKU - DD6886P
    • Yellow SKU - DD6893P
    • Measured Output(lumens) - 3000 lm
    • Yellow Measured Output(lumens) - 2700 lm
    • Color Temp (CCT) :6000k
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 36, Backlight: 0.4
    • Operating Voltage:9-30V
    • Current (amps @ 12.8V): Main Beam: 2.7, Backlight: 0.03

      SS3 Pro Data Sheet

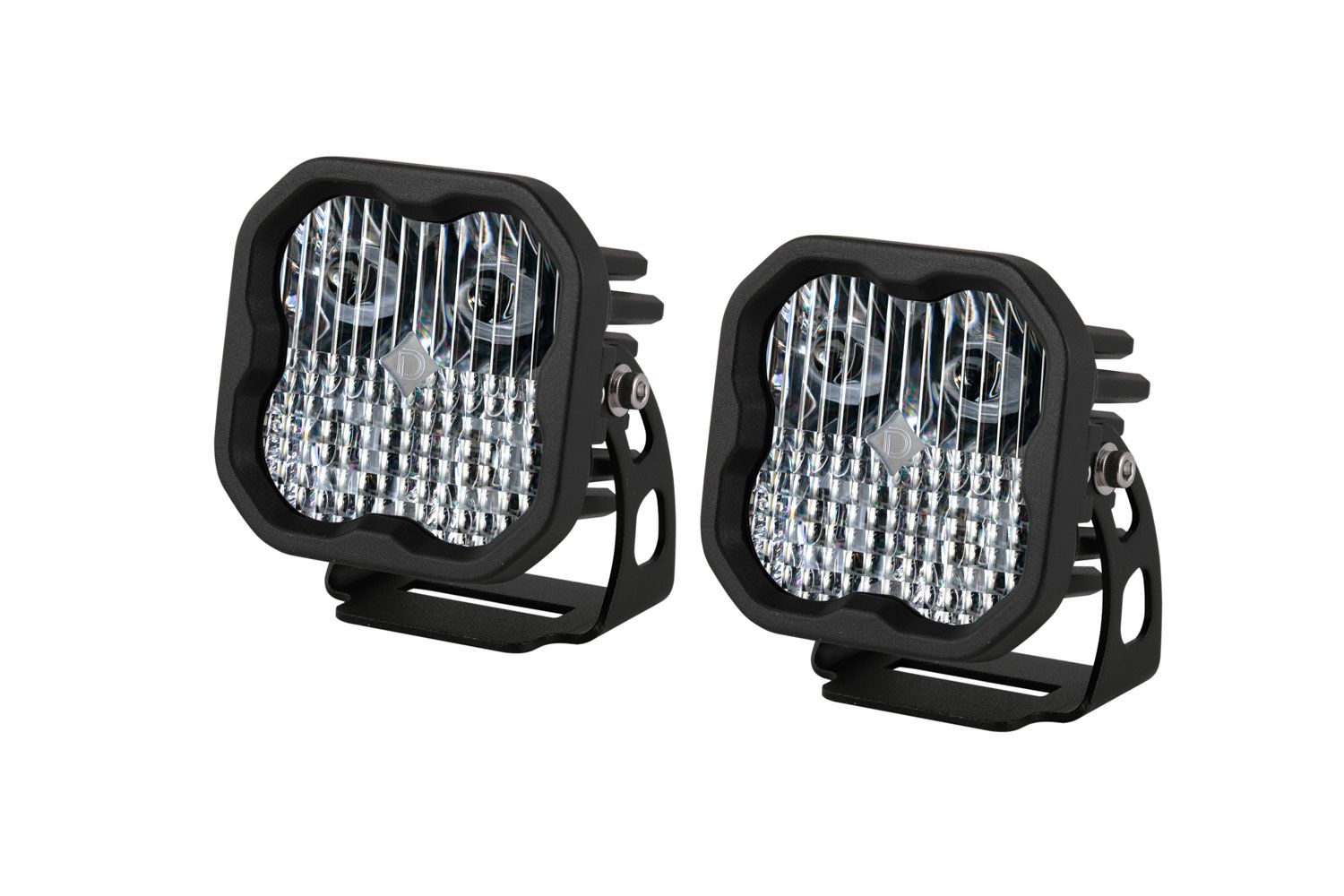

  • SS3 Max Combo:

    • White SKU - DD6907P
    • Yellow SKU - DD6970P
    • Measured Output(lumens) - 3500 lm
    • Yellow Measured Output(lumens) - 3500 lm
    • Color Temp (CCT) :6000k
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 38.5, Backlight: 0.4
    • Operating Voltage:9-30V
    • Current (amps @ 12.8V): Main Beam: 3, Backlight: 0.03

    SS3 Max Data Sheet

  • SS3 Sport SAE Driving:

    • White SKU - DD6853P
    • Yellow SKU - DD6868P
    • White Measured Output(lumens) - 1,520 lm
    • Yellow Measured Output(lumens) - 1300 lm
    • White Color Temp (CCT):6000K
    • Yellow Color Temp (CCT):3000k
    • Power (watts):Main Beam: 14.5, Backlight: 0.4
    • Operating Voltage:9-16V
    • Current (amps @ 12.8V):Main Beam: 1.1, Backlight: 0.03

    SS3 Sport Data Sheet

  • SS3 Pro SAE Driving:

    • White SKU - DD6874P
    • Yellow SKU - DD6889P
    • Measured Output(lumens) - 3000 lm
    • Yellow Measured Output(lumens) - 2700 lm
    • Color Temp (CCT) :6000k
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 36, Backlight: 0.4
    • Operating Voltage:9-30V
    • Current (amps @ 12.8V): Main Beam: 2.7, Backlight: 0.03


    SS3 Pro Data Sheet

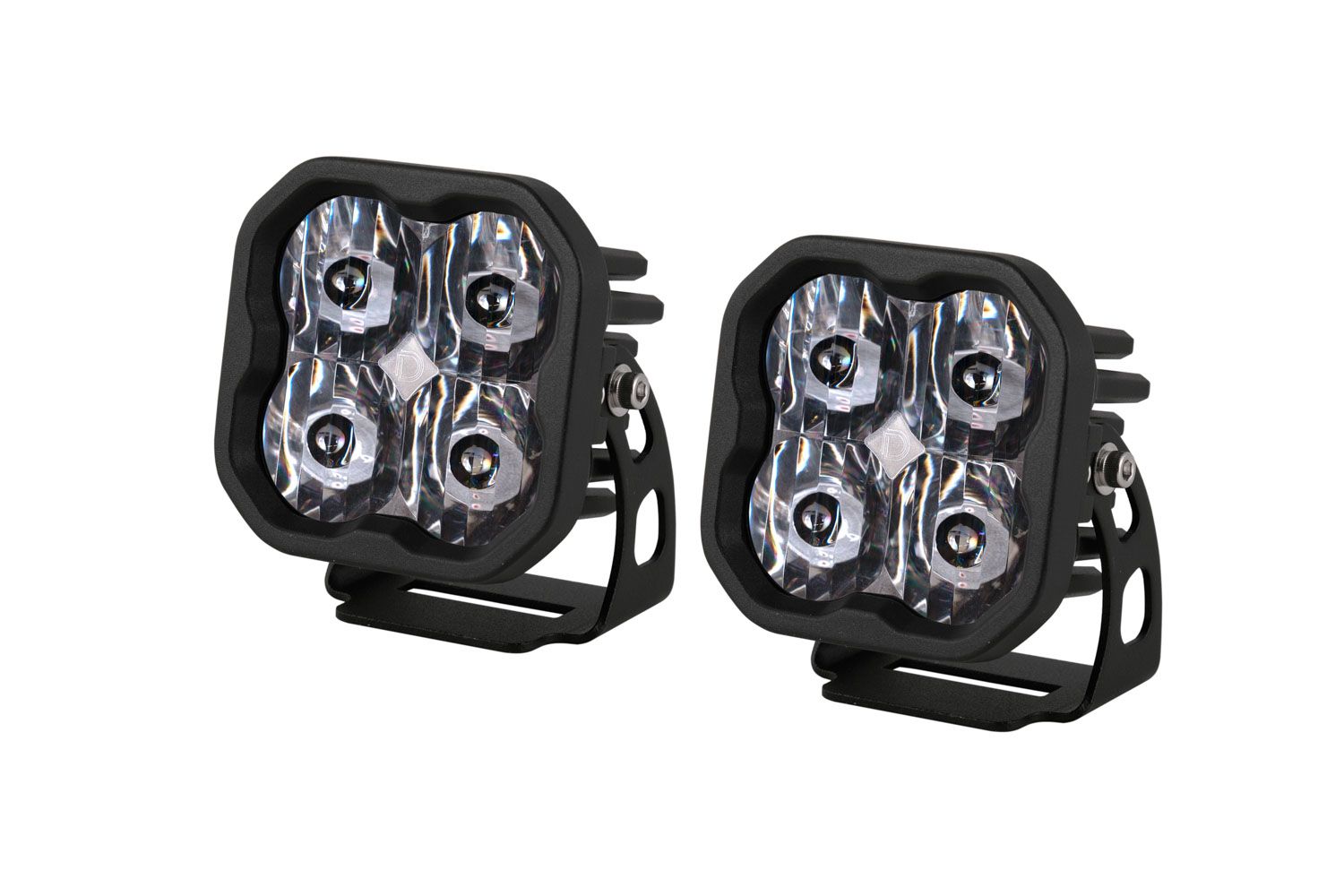

  • SS3 Max Driving:

    • White SKU - DD6895P
    • Yellow SKU - DD6971P
    • Measured Output(lumens) - 3500 lm
    • Yellow Measured Output(lumens) - 3500 lm
    • Color Temp (CCT) :6000k
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 38.5, Backlight: 0.4
    • Operating Voltage:9-30V
    • Current (amps @ 12.8V): Main Beam: 3, Backlight: 0.03


    SS3 Max Data Sheet

  • SS3 Sport SAE Fog:

    • White SKU - DD6855P
    • Yellow SKU - DD6869P
    • White Measured Output(lumens) - 1,520 lm
    • Yellow Measured Output(lumens) - 1300 lm
    • White Color Temp (CCT):6000K
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 14.5, Backlight: 0.4
    • Operating Voltage:9-16V
    • Current (amps @ 12.8V): Main Beam: 1.1, Backlight: 0.03

    SS3 Sport Data Sheet

  • SS3 Pro SAE Fog:

    • White SKU - DD6876P
    • Yellow SKU - DD6890P
    • Measured Output(lumens) - 3000 lm
    • Yellow Measured Output(lumens) - 2700 lm
    • Color Temp (CCT) :6000k
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 36, Backlight: 0.4
    • Operating Voltage:9-30V
    • Current (amps @ 12.8V): Main Beam: 2.7, Backlight: 0.03


    SS3 Pro Data Sheet

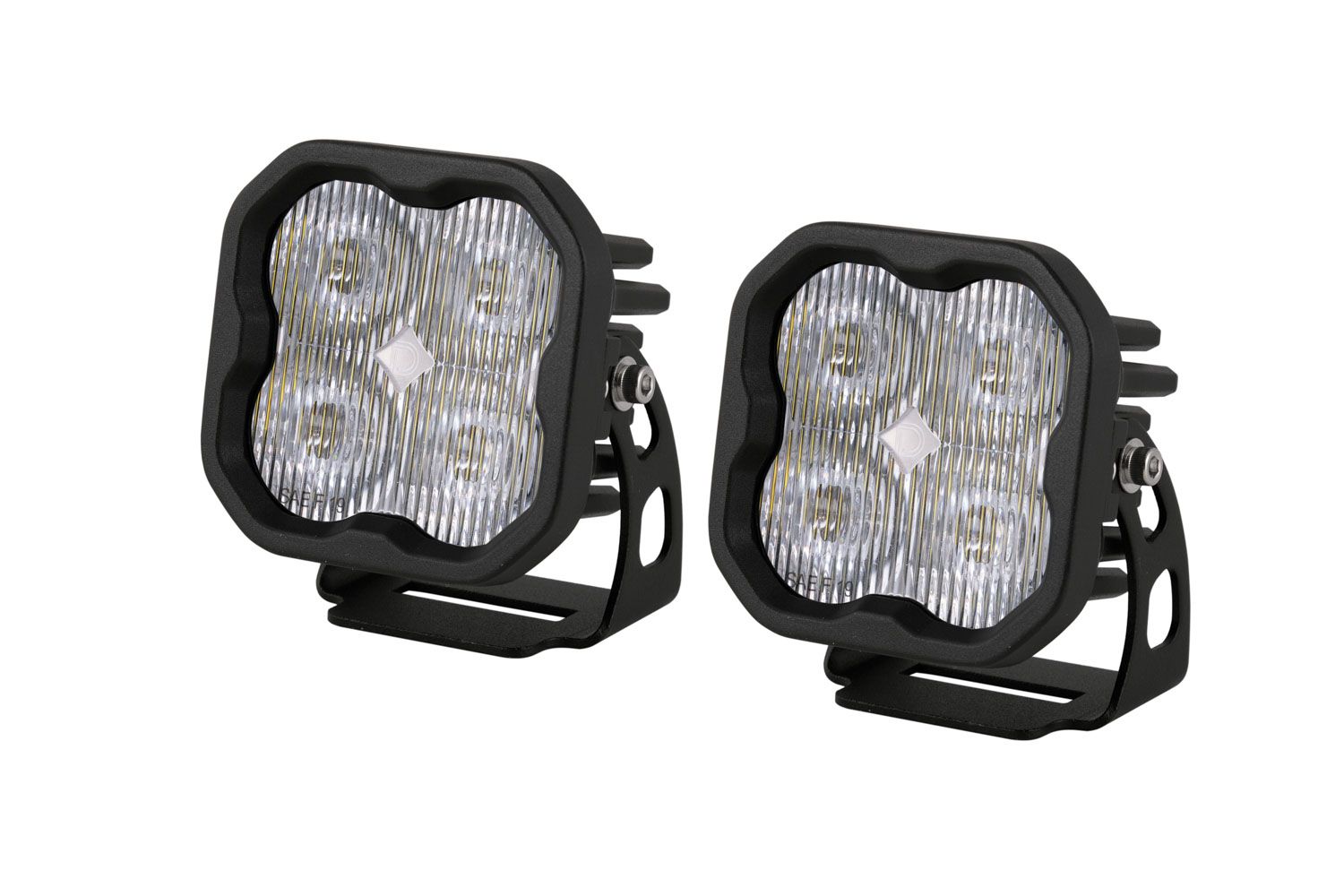

  • SS3 Max SAE Fog:

    • White SKU - DD6897P
    • Yellow SKU - DD6910P
    • Measured Output(lumens) - 3500 lm
    • Yellow Measured Output(lumens) - 3500 lm
    • Color Temp (CCT) :6000k
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 38.5, Backlight: 0.4
    • Operating Voltage:9-30V
    • Current (amps @ 12.8V): Main Beam: 3, Backlight: 0.03


    SS3 Max Data Sheet

  • SS3 Sport Flood:

    • White SKU - DD6857P
    • Yellow SKU - DD6870P
    • White Measured Output(lumens) - 1,520 lm
    • Yellow Measured Output(lumens) - 1300 lm
    • White Color Temp (CCT):6000K
    • Yellow Color Temp (CCT):3000k
    • Power (watts):Main Beam: 14.5, Backlight: 0.4
    • Operating Voltage:9-16V
    • Current (amps @ 12.8V):Main Beam: 1.1, Backlight: 0.03

    SS3 Sport Data Sheet

  • SS3 Pro Flood:

    • White SKU - DD6878P
    • Yellow SKU - DD6891P
    • Measured Output(lumens) - 3000 lm
    • Yellow Measured Output(lumens) - 2700 lm
    • Color Temp (CCT) :6000k
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 36, Backlight: 0.4
    • Operating Voltage:9-30V
    • Current (amps @ 12.8V): Main Beam: 2.7, Backlight: 0.03


    SS3 Pro Data Sheet

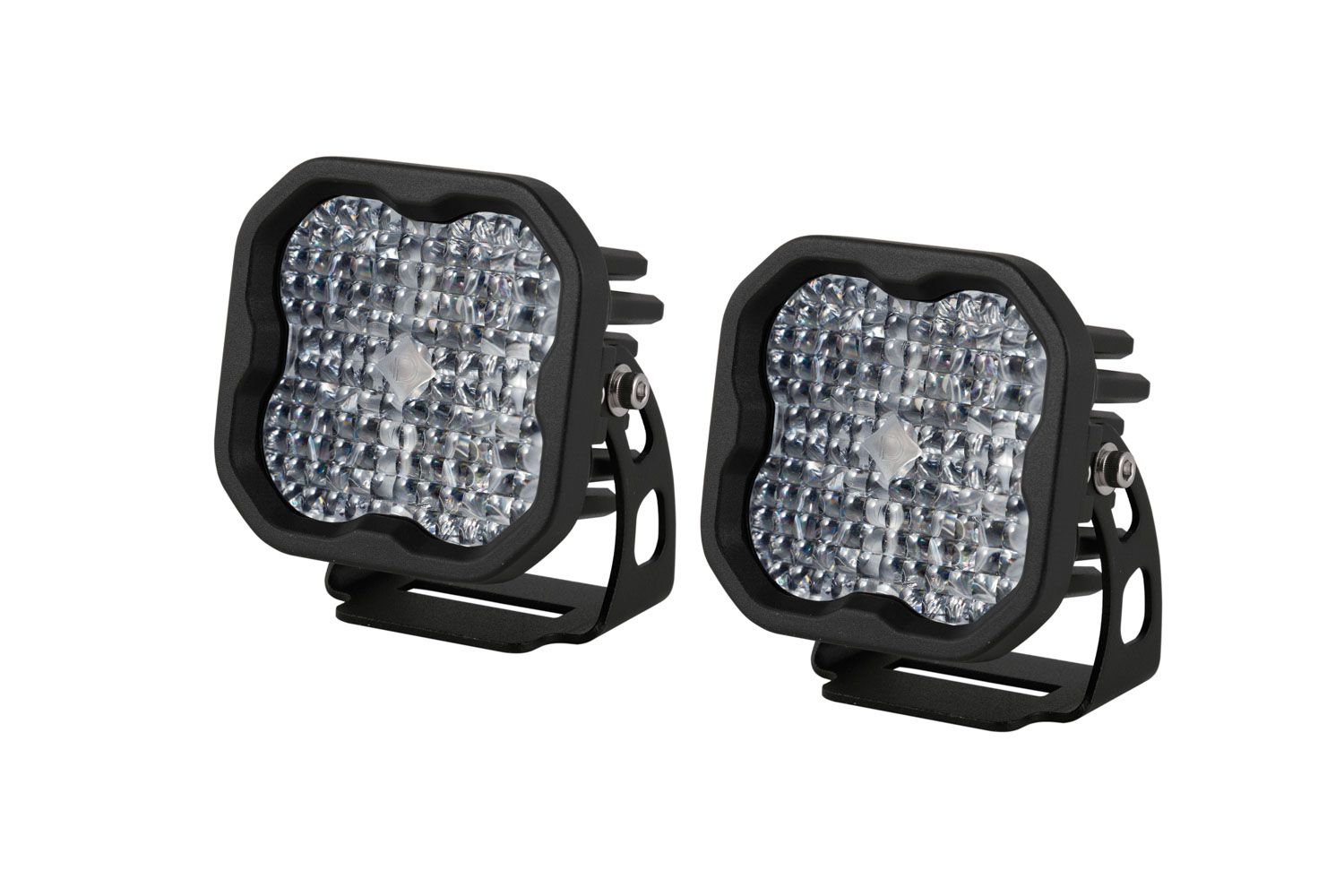

  • SS3 Max Flood:

    • White SKU - DD6899P
    • Measured Output(lumens) - 3500 lm
    • Color Temp (CCT) :6000k
    • Power (watts): Main Beam: 38.5, Backlight: 0.4
    • Operating Voltage:9-30V
    • Current (amps @ 12.8V): Main Beam: 3, Backlight: 0.03


    SS3 Max Data Sheet

  • SS3 Sport Spot:

    • White SKU - DD6861P
    • Yellow SKU - DD6871P
    • White Measured Output(lumens) - 1,520 lm
    • Yellow Measured Output(lumens) - 1300 lm
    • White Color Temp (CCT):6000K
    • Yellow Color Temp (CCT):3000k
    • Power (watts):Main Beam: 14.5, Backlight: 0.4
    • Operating Voltage:9-16V
    • Current (amps @ 12.8V):Main Beam: 1.1, Backlight: 0.03

    SS3 Sport Data Sheet

  • SS3 Pro Spot:

    • White SKU - DD6882P
    • Yellow SKU - DD6892P
    • Measured Output(lumens) - 3000 lm
    • Yellow Measured Output(lumens) - 2700 lm
    • Color Temp (CCT) :6000k
    • Yellow Color Temp (CCT):3000k
    • Power (watts): Main Beam: 36, Backlight: 0.4
    • Operating Voltage:9-30V
    • Current (amps @ 12.8V): Main Beam: 2.7, Backlight: 0.03

    SS3 Pro Data Sheet

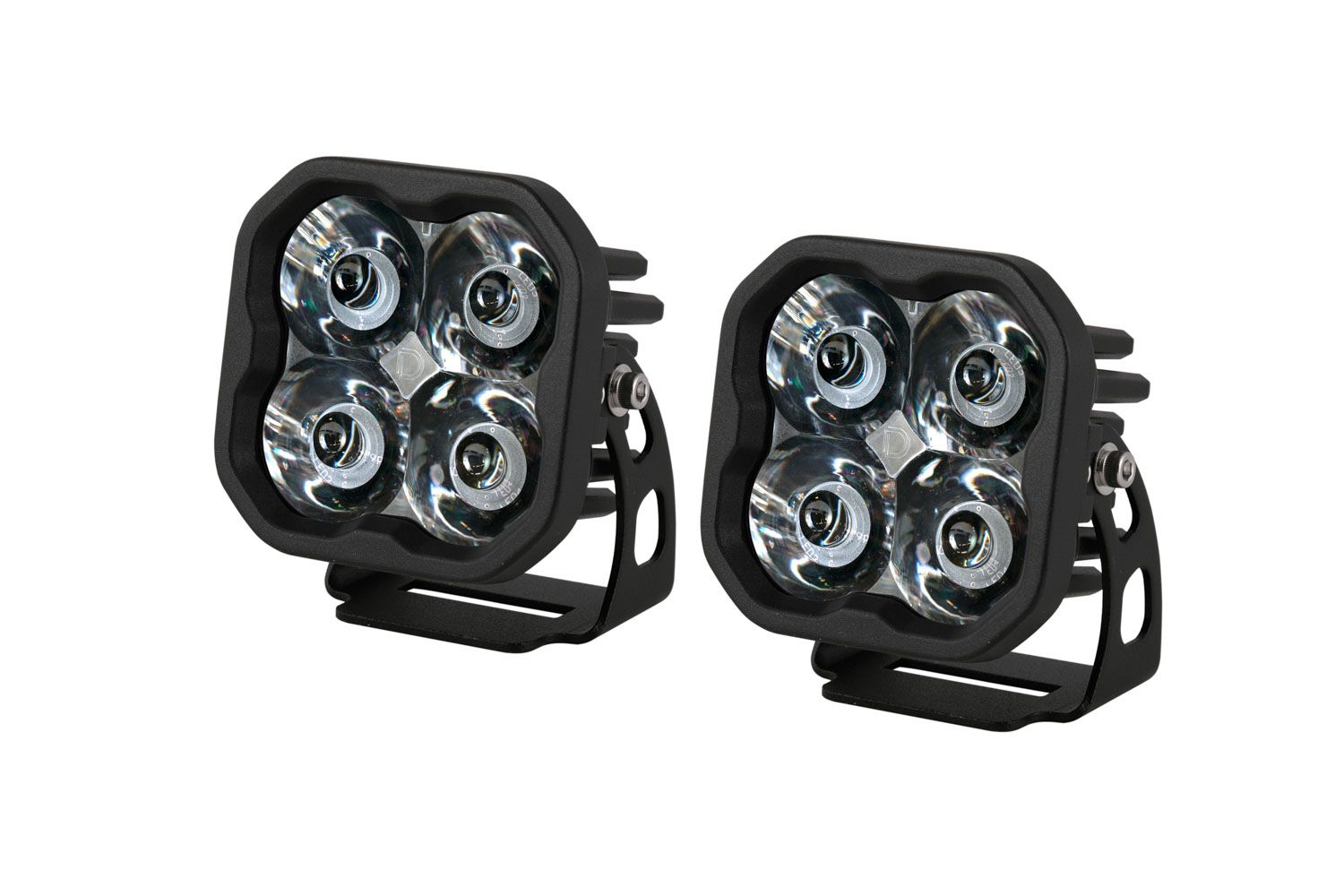

  • SS3 Max Spot:

    • White SKU - DD6903P
    • Measured Output(lumens) - 3500 lm
    • Color Temp (CCT) :6000k
    • Power (watts): Main Beam: 38.5, Backlight: 0.4
    • Operating Voltage:9-30V
    • Current (amps @ 12.8V): Main Beam: 3, Backlight: 0.03

    SS3 Max Data Sheet

SS5 Pods

  • SS5 Sport Combo:

    • White SKU - DD6769P
    • Yellow SKU - DD6772P
    • White Measured Output(lumens) - 3,800 lm
    • Yellow Measured Output(lumens) - 3,700 lm
    • White Color Temp (CCT):6000K
    • Yellow Color Temp (CCT):3000k
    • Power (watts):Main Beam: 40, Backlight: 3.17
    • Operating Voltage:9-16V
    • Current (amps @ 12.8V):Main Beam: 2.75, Backlight: 0.25

  • SS5 Pro Combo:

    • White SKU - DD6775P
    • Yellow SKU - DD6778P
    • Measured Output(lumens) - 9,600 lm
    • Yellow Measured Output(lumens) - 7,900 lm
    • Color Temp (CCT) :6000k
    • Yellow Color Temp (CCT):3000k
    • Power (watts):Main Beam: 90, Backlight: 3.17
    • Operating Voltage:9-16V
    • Current (amps @ 12.8V):Main Beam: 6, Backlight: 0.25

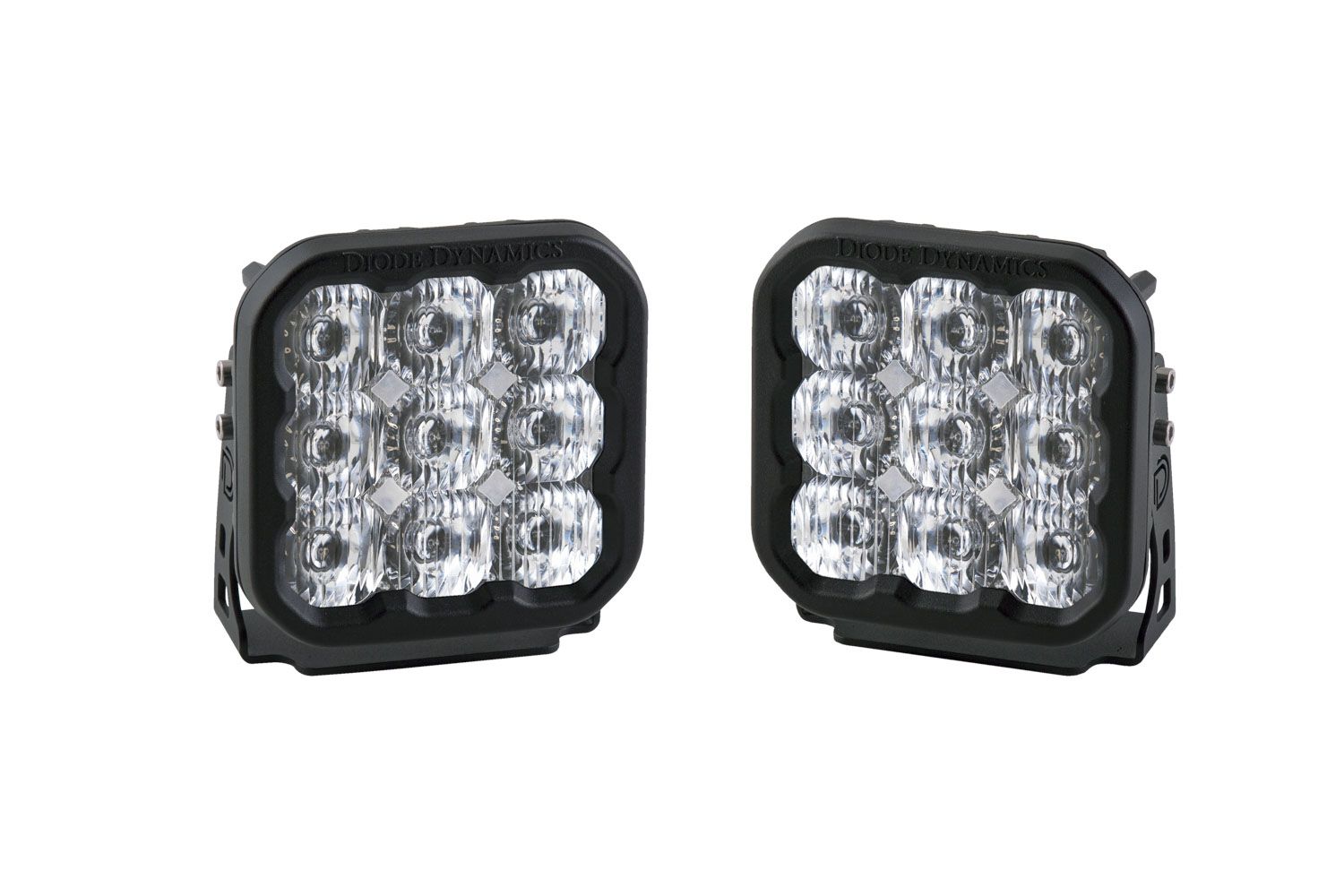

  • SS5 Sport Driving:

    • White SKU - DD6780P
    • Yellow SKU - DD6781P
    • Measured Output(lumens) - 3,800 lm
    • Yellow Measured Output(lumens) - 3,700 lm
    • Color Temp (CCT):6000K
    • Yellow Color Temp (CCT):3000k
    • Power (watts):Main Beam: 40, Backlight: 3.17
    • Operating Voltage:9-16V
    • Current (amps @ 12.8V):Main Beam: 2.75, Backlight: 0.25

  • SS5 Pro Driving:

    • White SKU - DD6782P
    • Yellow SKU - DD6783P
    • Measured Output(lumens) - 9,600 lm
    • Yellow Measured Output(lumens) - 7,900 lm
    • Color Temp (CCT) :6000k
    • Yellow Color Temp (CCT):3000k
    • Power (watts):Main Beam: 90, Backlight: 3.17
    • Operating Voltage:9-16V
    • Current (amps @ 12.8V):Main Beam: 6, Backlight: 0.25

  • SS5 Sport Flood:

    • White SKU - DD6770P
    • Yellow SKU - DD6773P
    • Measured Output(lumens) - 3,800 lm
    • Yellow Measured Output(lumens) - 3,700 lm
    • Color Temp (CCT):6000K
    • Yellow Color Temp (CCT):3000k
    • Power (watts):Main Beam: 40, Backlight: 3.17
    • Operating Voltage:9-16V
    • Current (amps @ 12.8V):Main Beam: 2.75, Backlight: 0.25

  • SS5 Pro Flood:

    • White SKU - DD6776P
    • Yellow SKU - DD6779P
    • Measured Output(lumens) - 9,600 lm
    • Yellow Measured Output(lumens) - 7,900 lm
    • Color Temp (CCT) :6000k
    • Yellow Color Temp (CCT):3000k
    • Power (watts):Main Beam: 90, Backlight: 3.17
    • Operating Voltage:9-16V
    • Current (amps @ 12.8V):Main Beam: 6, Backlight: 0.25

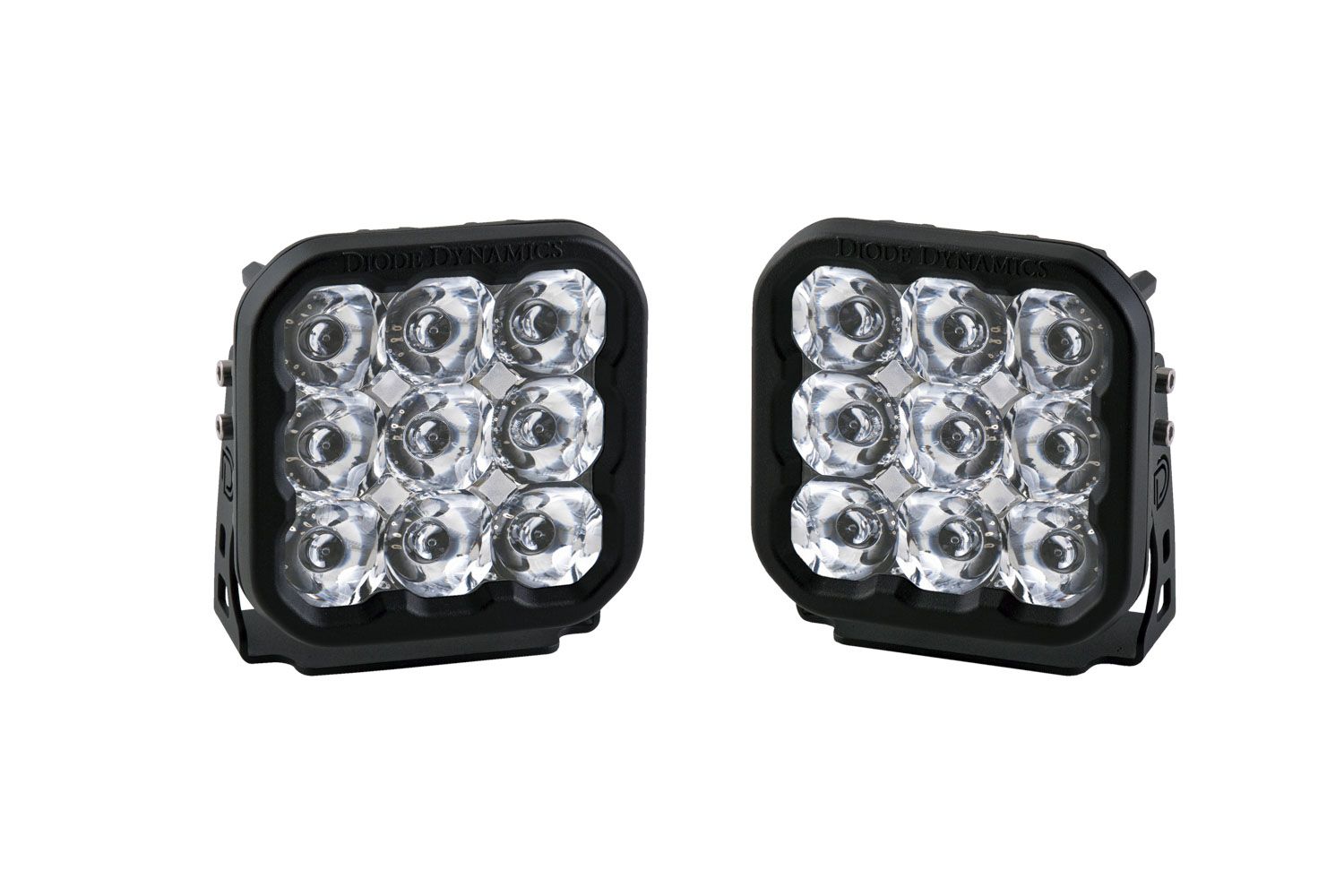

  • SS5 Sport Spot:

    • White SKU - DD6768P
    • Yellow SKU - DD6771P
    • Measured Output(lumens) - 3,800 lm
    • Yellow Measured Output(lumens) - 3,700 lm
    • Color Temp (CCT):6000K
    • Yellow Color Temp (CCT):3000k
    • Power (watts):Main Beam: 40, Backlight: 3.17
    • Operating Voltage:9-16V
    • Current (amps @ 12.8V):Main Beam: 2.75, Backlight: 0.25

  • SS5 Pro Spot:

    • White SKU - DD6774P
    • Yellow SKU - DD6777P
    • Measured Output(lumens) - 9,600 lm
    • Yellow Measured Output(lumens) - 7,900 lm
    • Color Temp (CCT) :6000k
    • Yellow Color Temp (CCT):3000k
    • Power (watts):Main Beam: 90, Backlight: 3.17
    • Operating Voltage:9-16V
    • Current (amps @ 12.8V):Main Beam: 6, Backlight: 0.25
  • Shipping Worldwide
    *Free Shipping Over $299.99 (Within the 48 Cont. USA)
  • Top-notch support
    We are different. We're Specialists.
  • Secure payments
    All Major Payments Types AcceptedPayment Plans Available with Shop Pay so you can pay over time.
  • Military & First Resp Discounts
    Look for the "GOVXID" icon at checkout. Discounts will automatically be applied (Some Exclusions Apply)
