3 Pole WP Connector Adapters to Bronco PREP Fog Connector with Backlight Port (Pair) (Modular Bumper Only)
Couldn't load pickup availability
- Fully secure checkout
- Trusted by thousands
- Rated and reviewed
Sorry, it's out of stock.
But we can let you know when it's back in.
Question about this product?
We're happy to help.

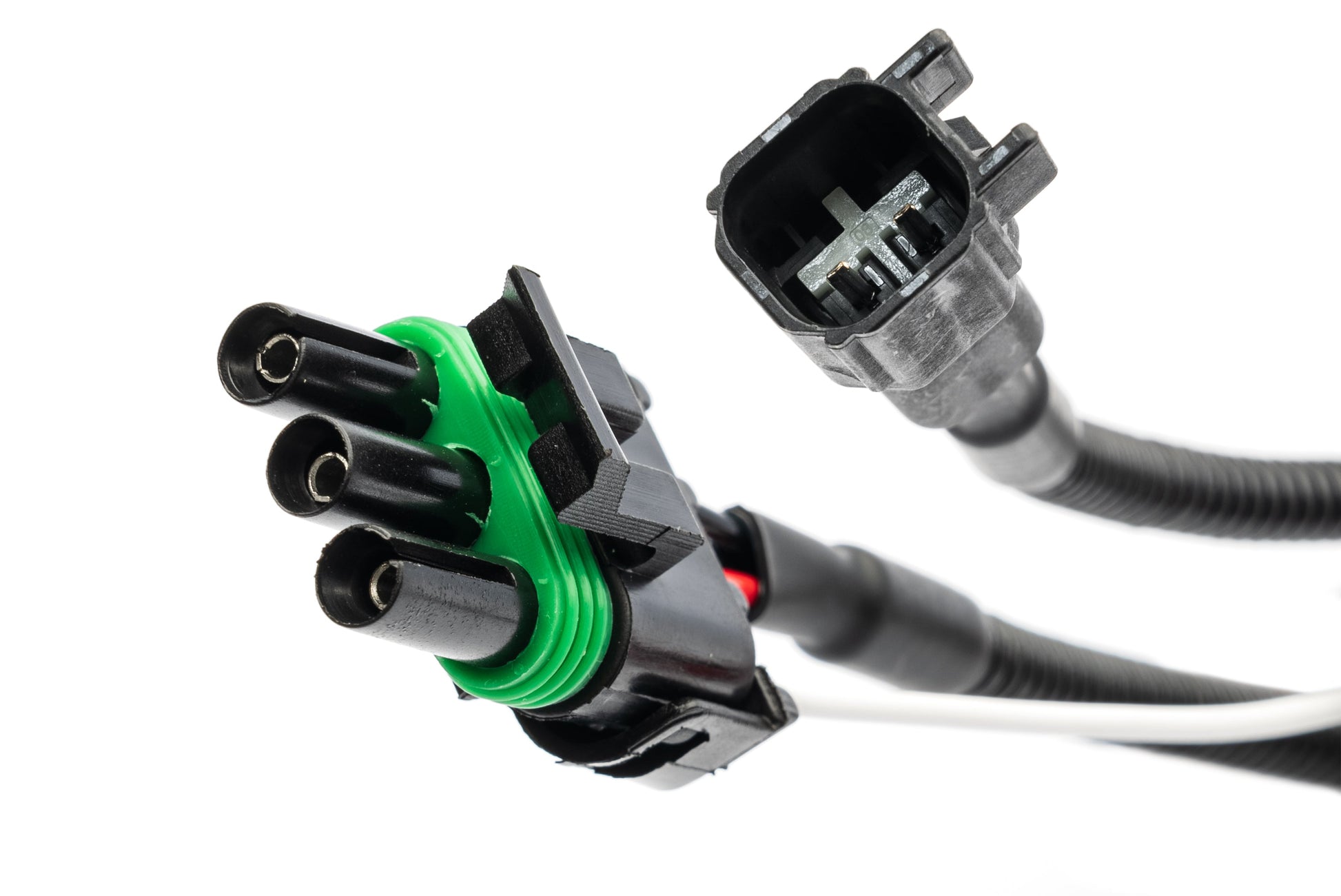

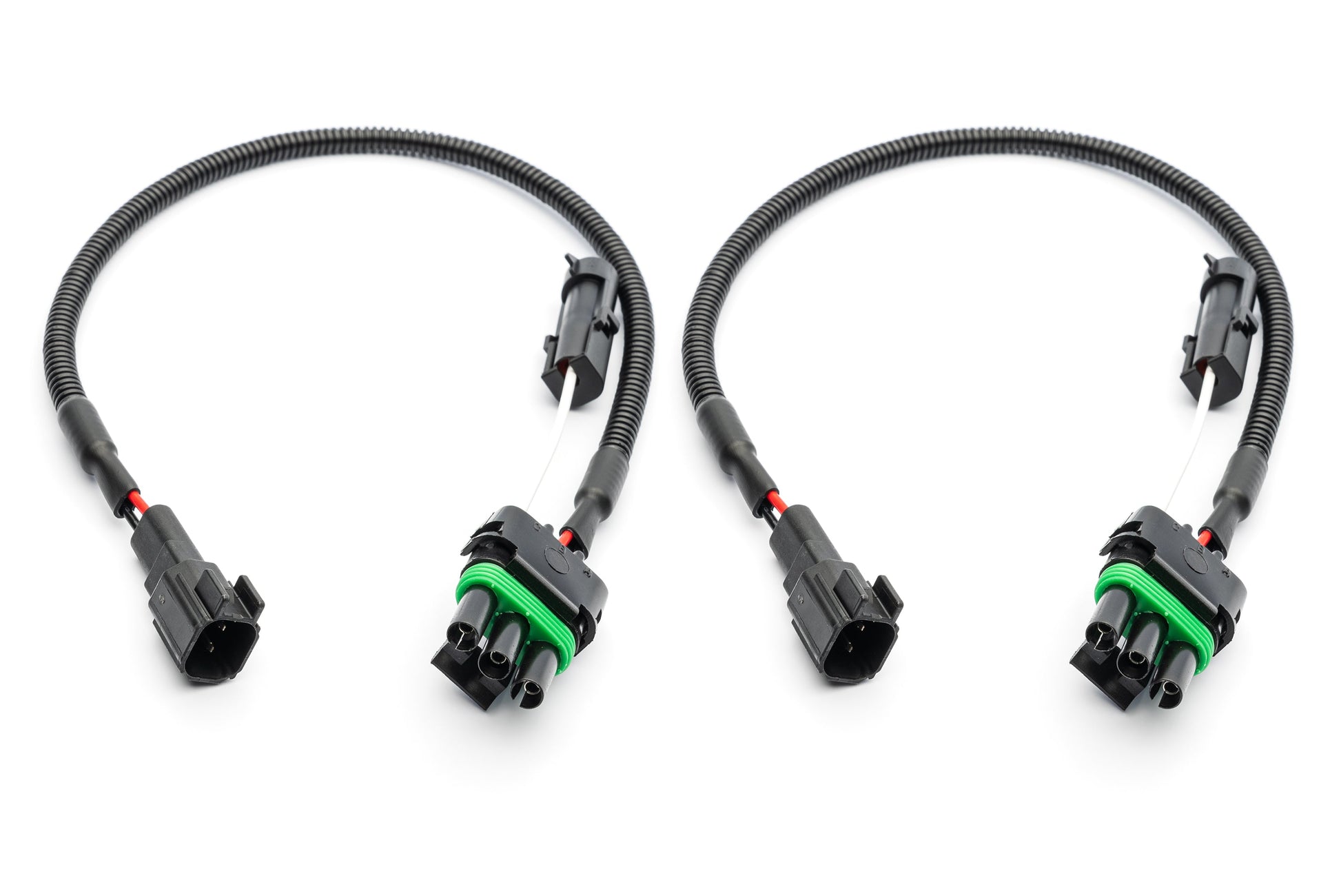

3 Pole WP Connector Adaptor Kit WITH BACKLIGHT PORT to Factory FOG PREP connectors (pair)
This adapter has an extended cable since the prep connectors are by the tow hooks.
This is ONLY for Broncos that CAME WITH the MODULAR Bumper. Not broncos that already had Fog lights. These connect to your prep connectors and you will STILL need to program the truck with Forscan and purchase a new headlight switch from Ford that has a fog button to use the connections.
Works with Various Series Lights that use the 3 way Weather Pack connectors. Or any of our plug in adapters to match any light.
These have backlight ports so you can add power to lights such as the Radiance, 360, or Diode Dynamics lights with the use of our backlights Y harness, with or without one of our plug in marker adapters or a switch.
Connects to the factory fog PREP connection in the Bronco with Factory Capable Bumper. Plugs directly into an aftermarket light that has 3 wires. Such as Rigid Radiance or Diode Dynamics with Backlight. Some lights have connectors. You will want to select the correct matching adapter OR an add on Female connector kit for each
(Limit Amp draw can be placed on the factory circuit. Generally 2-4 amps per side max.)
Please note.
For Rigid Radiance/Scene, you would want to add on matching single 3 Way female WP connectors (Also in our Harness Section).
Click HERE for the single ADD ON Connectors for lights with bare wires
For Diode Dynamics you would want to add on the 4 Way DT adapter Also in our harness section.
Click HERE for 4 Way DT Adapters for Diode Dynamics
Then for either, you can add a backlight Y Harness to connect to 4 lights/connectors that will run a single connection up to the engine bay/fire wall area to power the backlights. You can either connect this harness to a single switch, or to our optional Parking/Marker adapter.
Click HERE for the Backlight Y Harness
You can also add on our Parking/Marker/Headlight adapter to power backlights automatically
Click HERE for the Headlight Adapter
