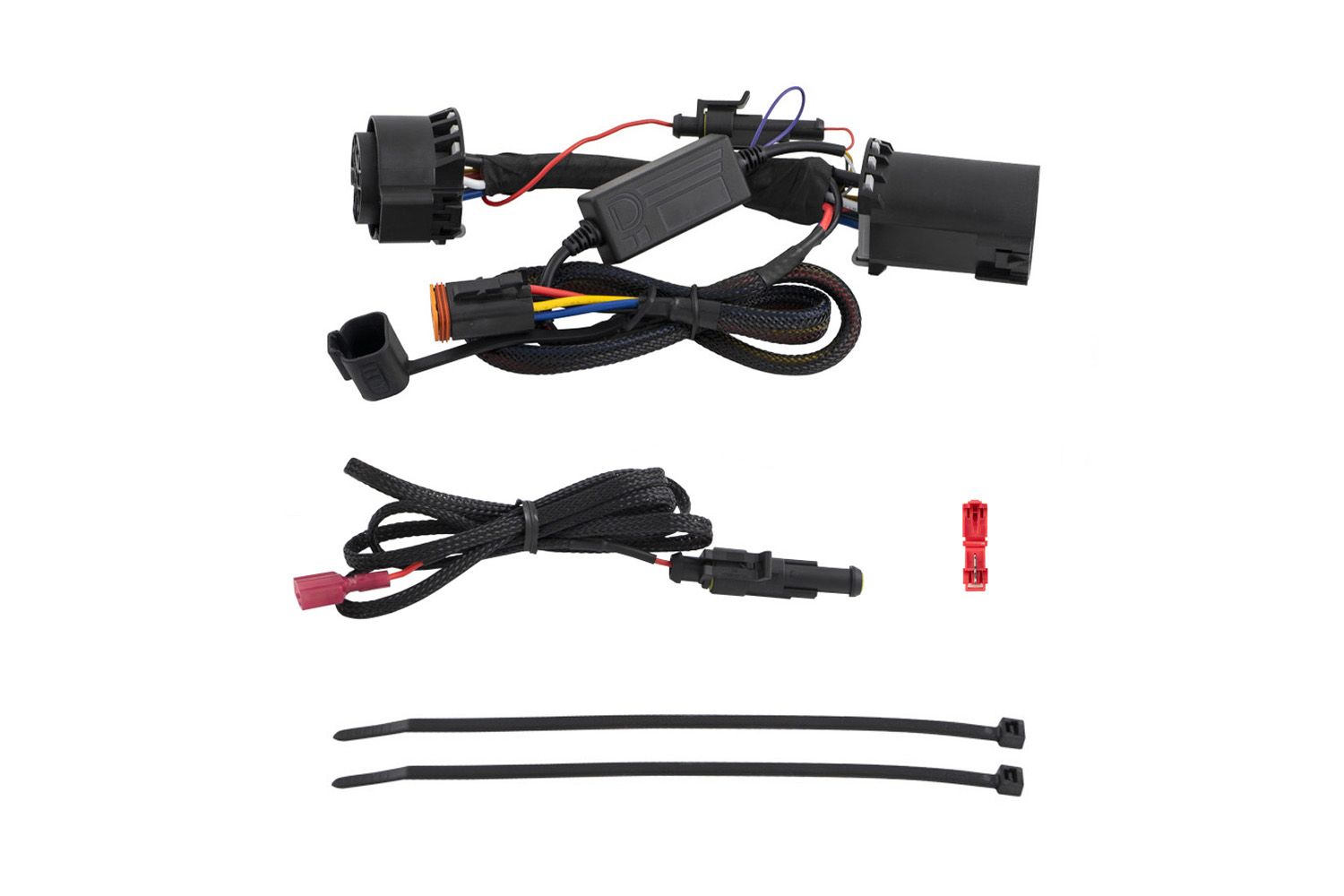

Diode Dynamics Stage Series C1R 7-pin Single-Output Trailer Hitch Wiring Kit - DD4146

Features

• Powers Diode Dynamics C1R HitchMount LED pods
• Connects directly to trailer hitch wiring for simple, everyday operation of LED pods.
• High capacity 10AWG wiring.

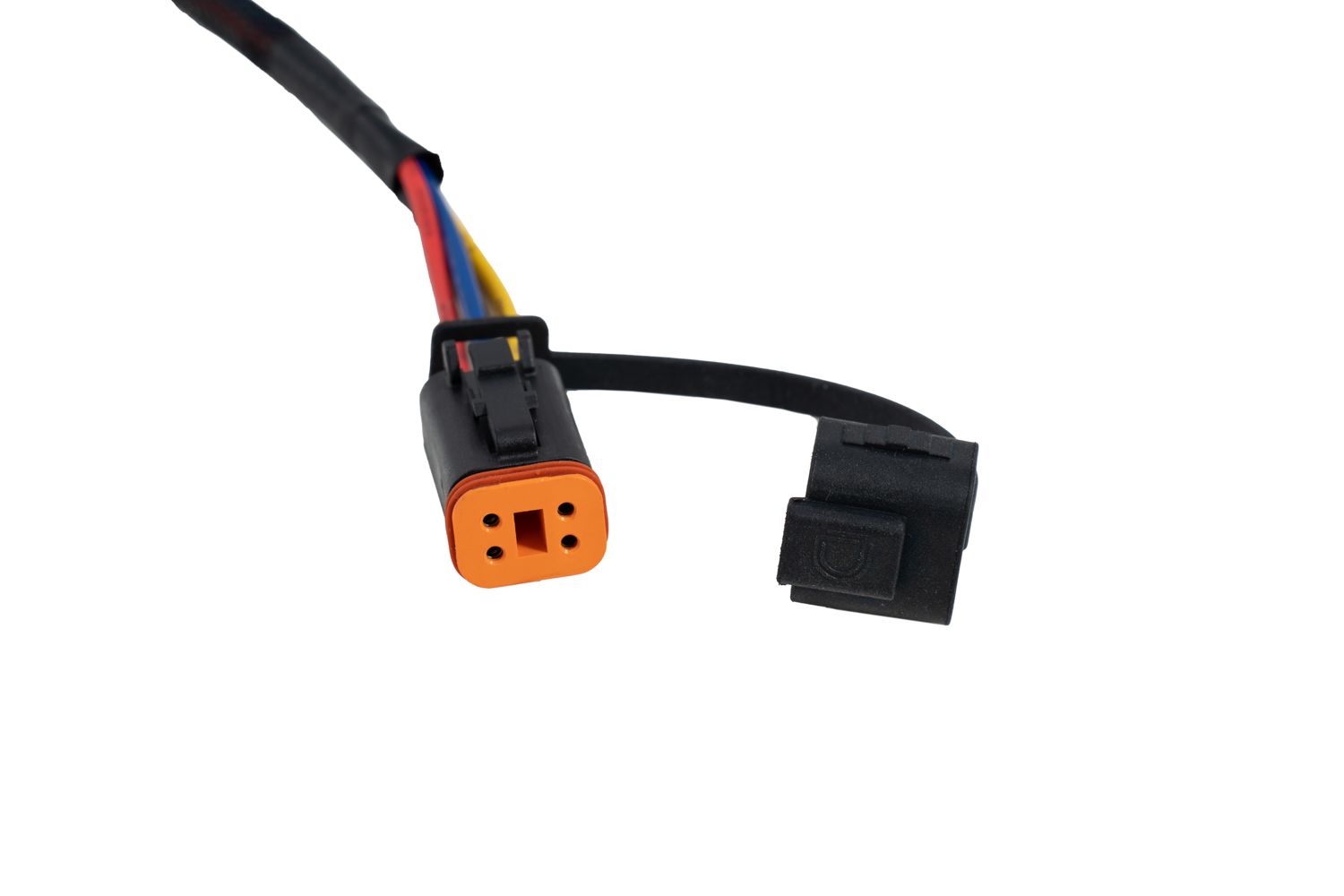

• Single Deutsch DT output connectors.

Overview

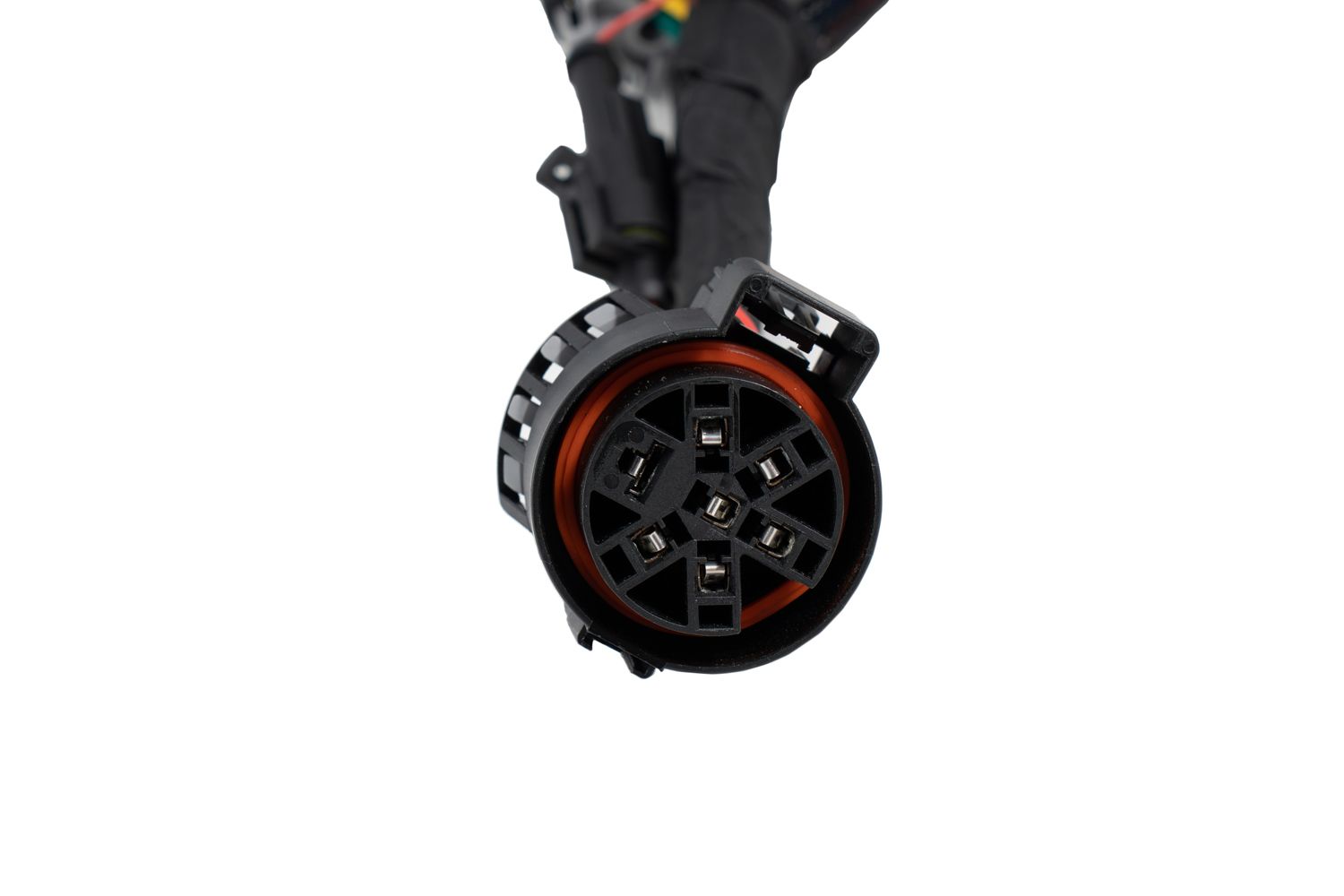

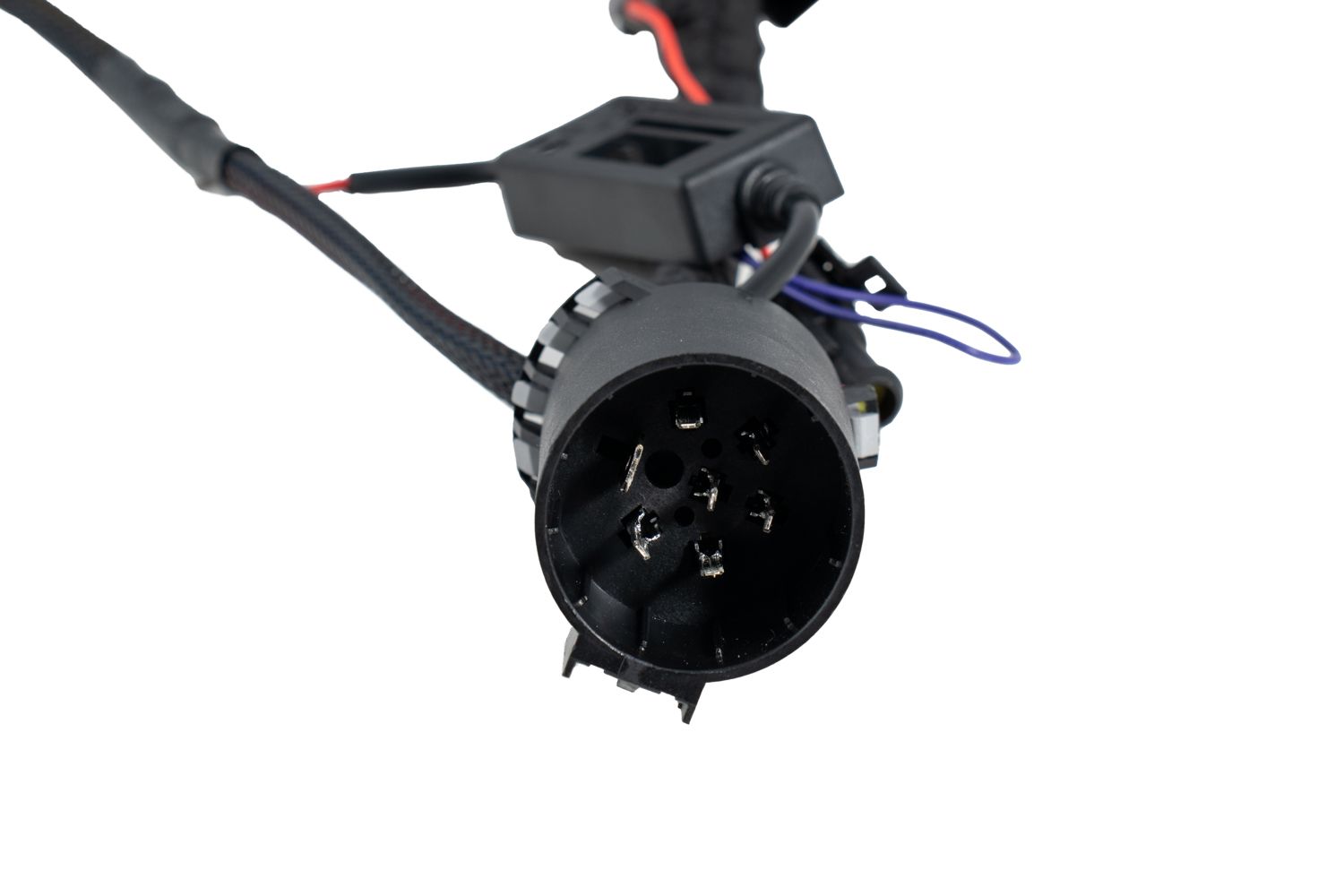

Easy Operation. This wiring harness connects to the 7-pin connector behind the bumper by your vehicle's trailer hitch. When paired with our C1R HitchMount LED pods, this harness allows your lights to operate as an additional red accent light with your tail lights, activates an additional 4th brake light anytime you apply your brakes, and then automatically switches to a high-power backup light when your vehicle is in reverse.

This harness also features optional brake light strobing functionality. When combined with our C1R LED pods, this harness allows the C1R LED pod to flash three times anytime the brake lights are applied, for greater visibility. The SafetyStrobe feature can be easily disabled if desired.

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike all other LED distributors, we assemble and engineer products in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!

Specifications

Operating Voltage: 9-16V

Wire Size: 10AWG

Operating Temperature: -40C to 85C (-40F to 185F)

Connector(s): Deutsch DT Input

Shipped Weight (lb): 0.75

Installation

Tools Needed: None

Modification: None

Installation Guide: Click to download
