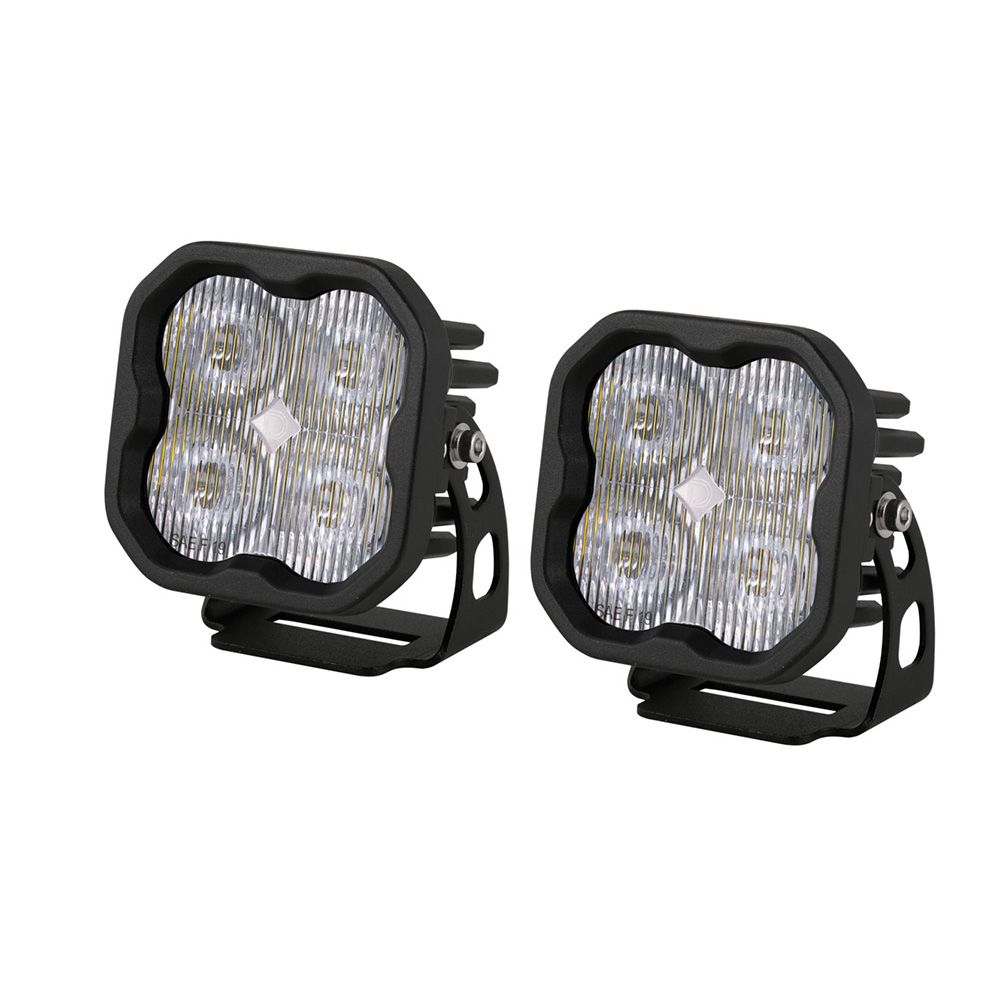

SS3 Dual-Color LED Pod (single or pair)

Features

• Selectable 6000K white and 3000K yellow output in one lamp.
• SmartSelect control using the existing fog light switch.
• Purpose-built Dual-Color power level positioned between Sport and Pro.
• Focused SAE-compliant fog pattern in both colors.
• Distinctive integrated amber backlight.
• Universal mounting brackets for custom installation.
• Engineered and assembled in the USA.

Overview

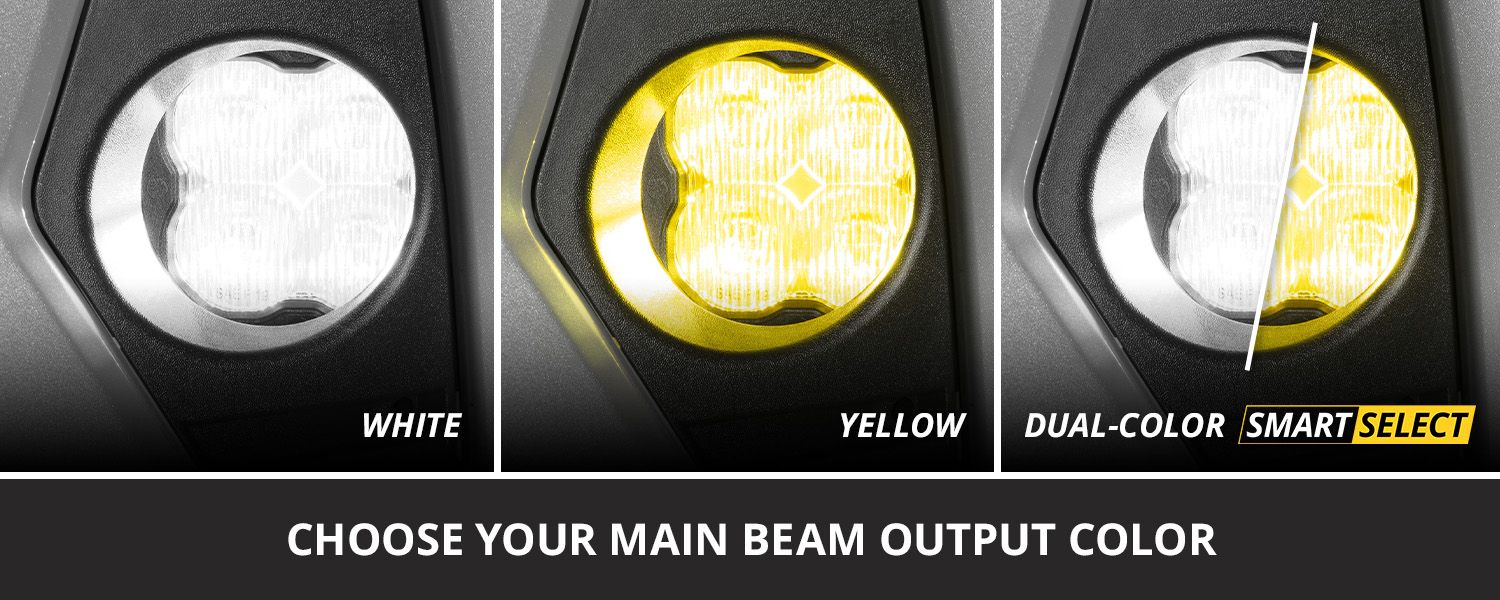

Two Colors in One Lamp. Get the versatility of white and yellow fog lighting without purchasing separate lamps or changing lenses. The Universal SS3 Dual-Color LED Pod features selectable 6000K cool white and 3000K selective yellow output in a single lamp. Choose crisp white output for a modern appearance or switch to selective yellow for improved contrast in rain, snow, fog, and dust.

SmartSelect Control. Switch between white and yellow using the existing fog light switch, with no additional selector switch required. To enter programming mode, cycle the fog lights on and off three times, leaving each state active for at least half a second and no more than five seconds. The lamps will cycle through the available colors twice. Leave the lamps on for at least five seconds when your preferred color is displayed to save it. If no selection is made after two complete cycles, the lamps return to white as the factory setting.

Purpose-Built Dual-Color Output. Unlike our single-color SS3 pods, which are available in Sport, Pro, and Max, the Dual-Color SS3 is offered in one purpose-built power level. It is positioned between Sport and Pro in the SS3 lineup, providing a balance of usable output and selectable color functionality.

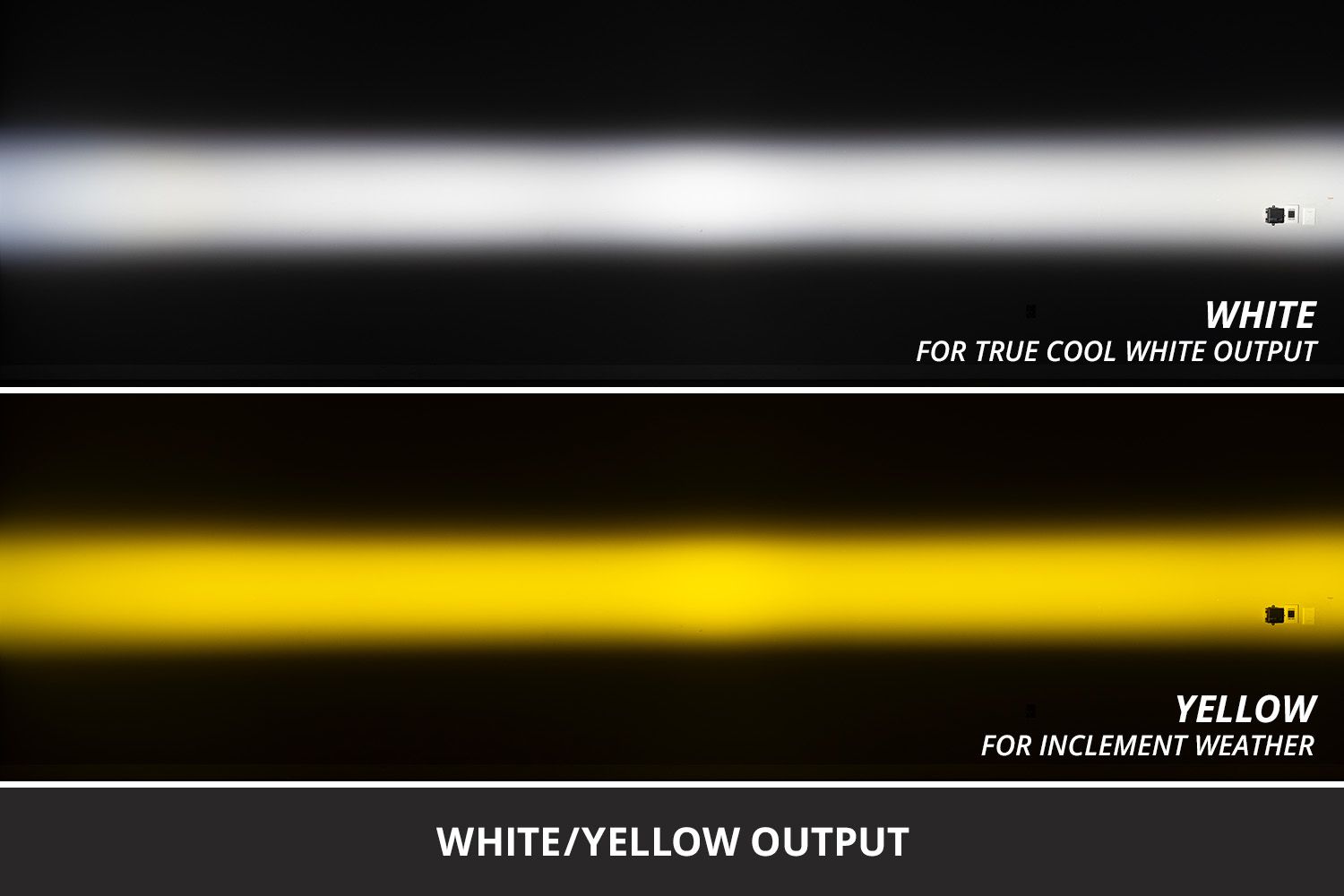

Focused Fog Pattern. The SS3 Dual-Color is available exclusively in the SAE Fog optic. Its custom-engineered TIR optic collects and directs the light where it is needed, producing a wide, controlled pattern with a sharp cutoff. Both white and yellow use the same focused fog pattern, so changing colors does not change the beam shape or aiming.

SAE-Compliant Performance. When installed as a pair and aimed in accordance with applicable regulations, the fog pattern meets SAE J583 requirements for legal on-road use. Please check your local laws and regulations for installation, aiming, and applicability.

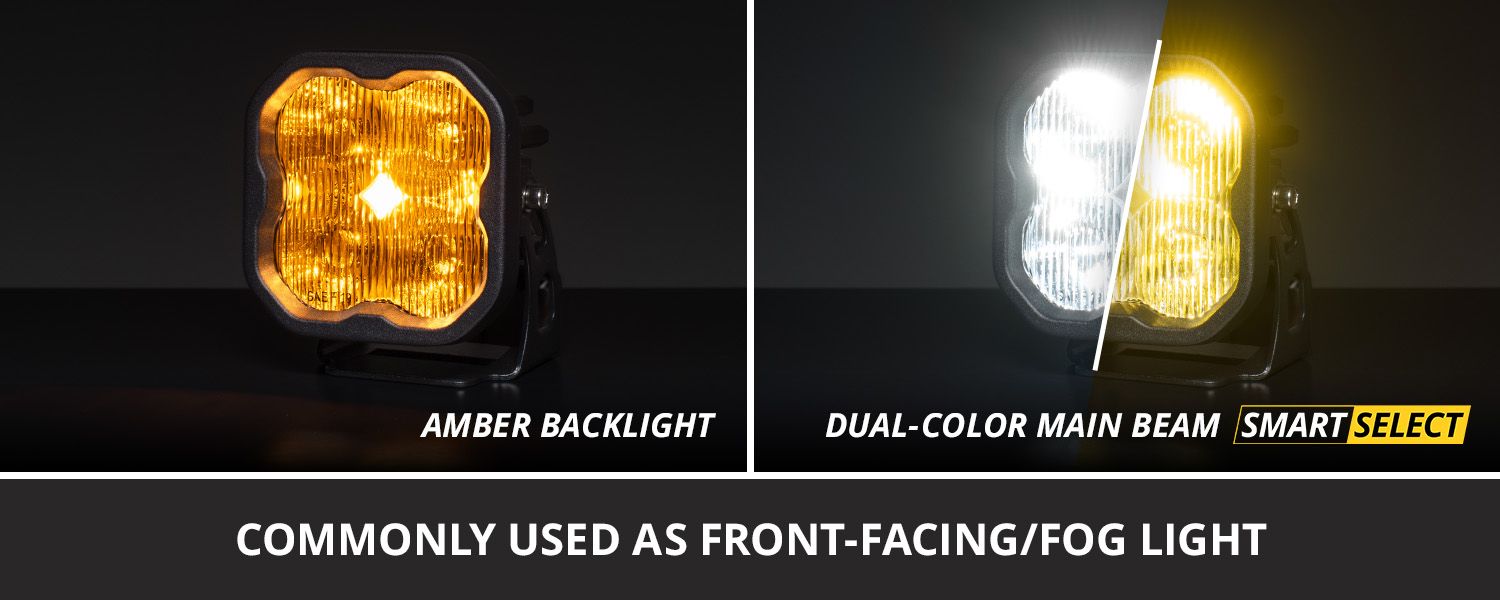

Integrated Amber Backlight. The SS3 Dual-Color includes a distinctive amber backlight that fully illuminates the TIR optic. The amber backlight is separate from the selectable white and yellow main beam and can be connected to your preferred vehicle function for a clean accent when the main beam is not in use.

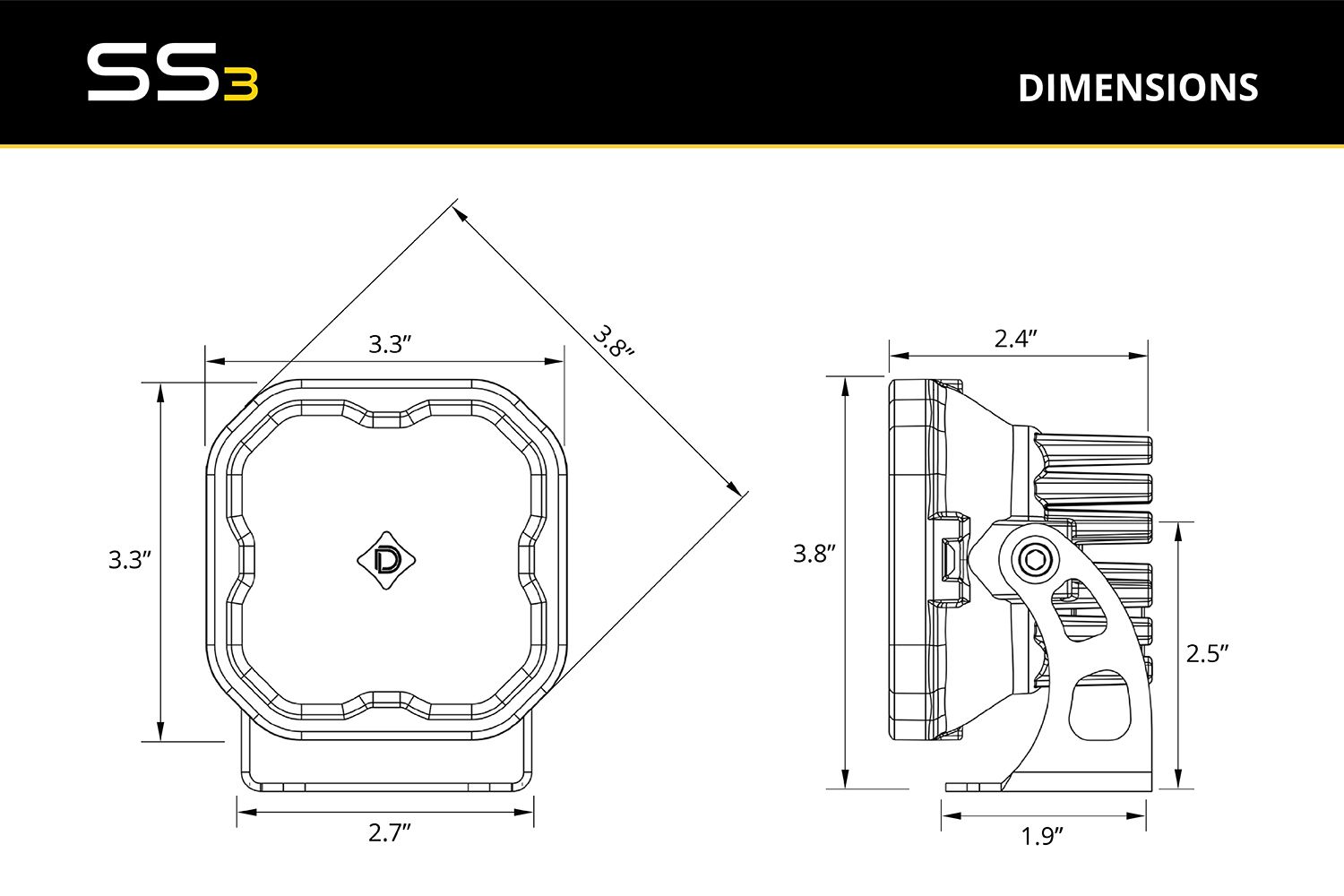

Universal Installation. The included universal brackets allow the lamps to be mounted on a wide range of vehicles and applications. Their compact size and adjustable mounting design make them an excellent option for custom fog light installations.

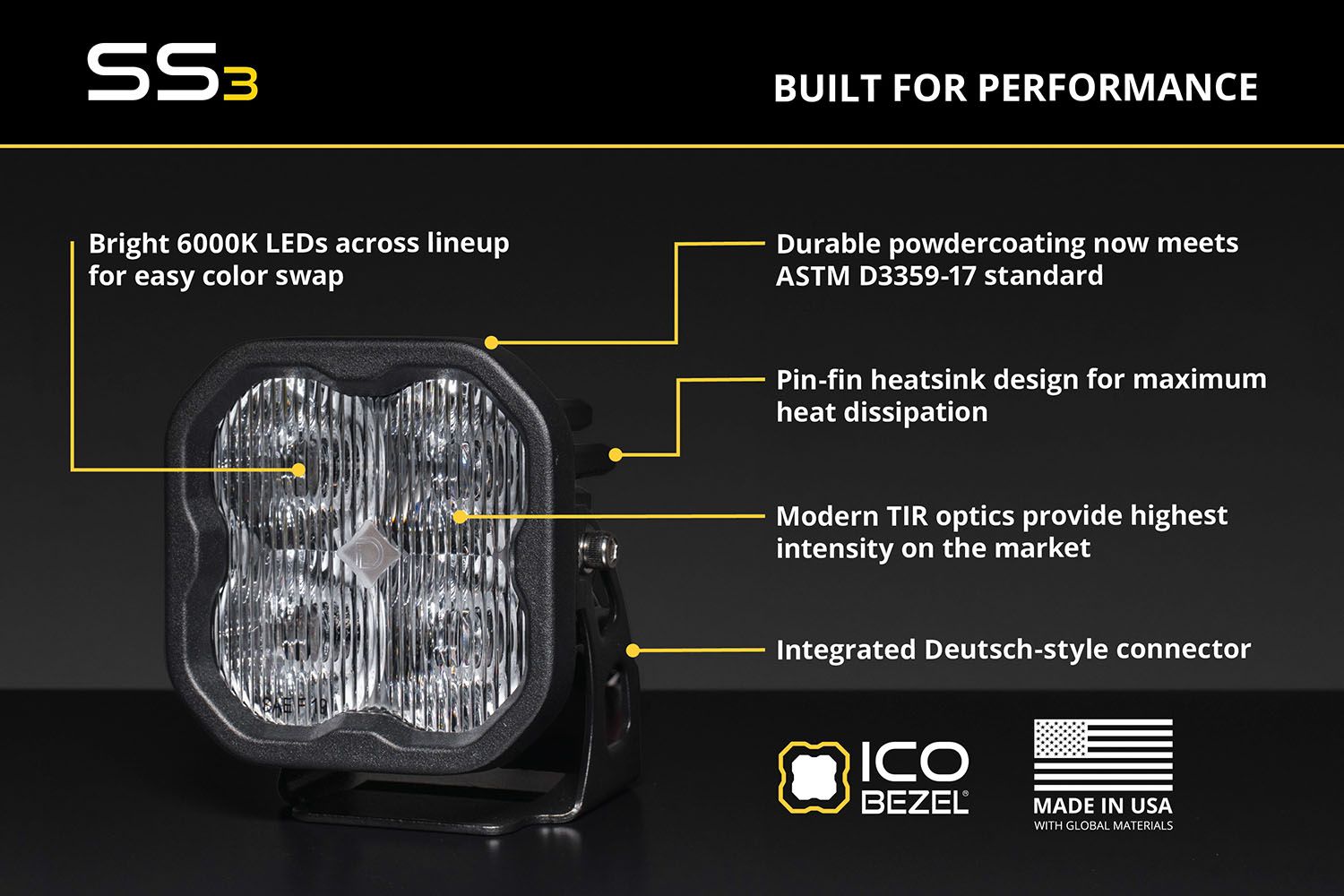

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture-intrusion, and corrosion testing. The durable aluminum housing and weather-resistant construction provide reliable performance in demanding conditions.

Experience. For more than 20 years, Diode Dynamics has developed high-performance automotive lighting solutions for enthusiasts. Our products are engineered, tested, and assembled in the United States using globally sourced materials, allowing for greater control over quality and performance.
